Pilot-Rc’s range of servos offer a mix between torque, speed and importantly affordability. They are designed around modellers, this particular servo is tailored for 49″ airframe and small jet and foam EDF airframe this servo delivering strong torque, high speed and precise centering

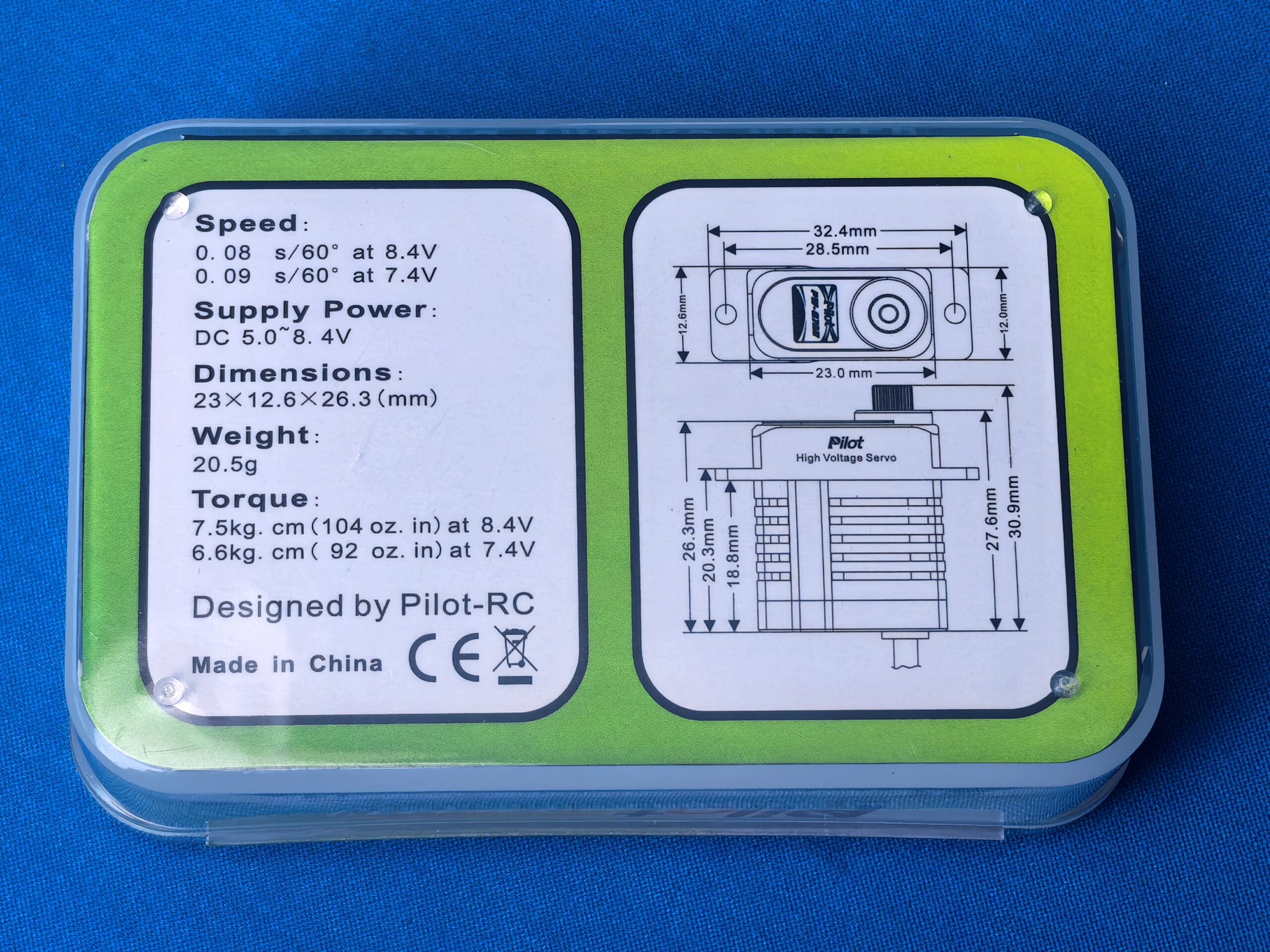

PY-07AH Specifications:
| Type | Micro – Brushless Digital |
| Voltage | 5.0v-8.4v |
| Torque | 7.5kg (104 oz) at 8.4v 6.6kg (92 oz) at 7.4v |
| Speed | 0.08s at 8.4v 0.09s at 7.4v |
| Weight | 20.5g |
| Dimensions | 23mm x 12.6mm x 26.3mm |
| Spline | 25T (futaba) |
| Gear | Steel |
| Bearings | Yes (x2) |

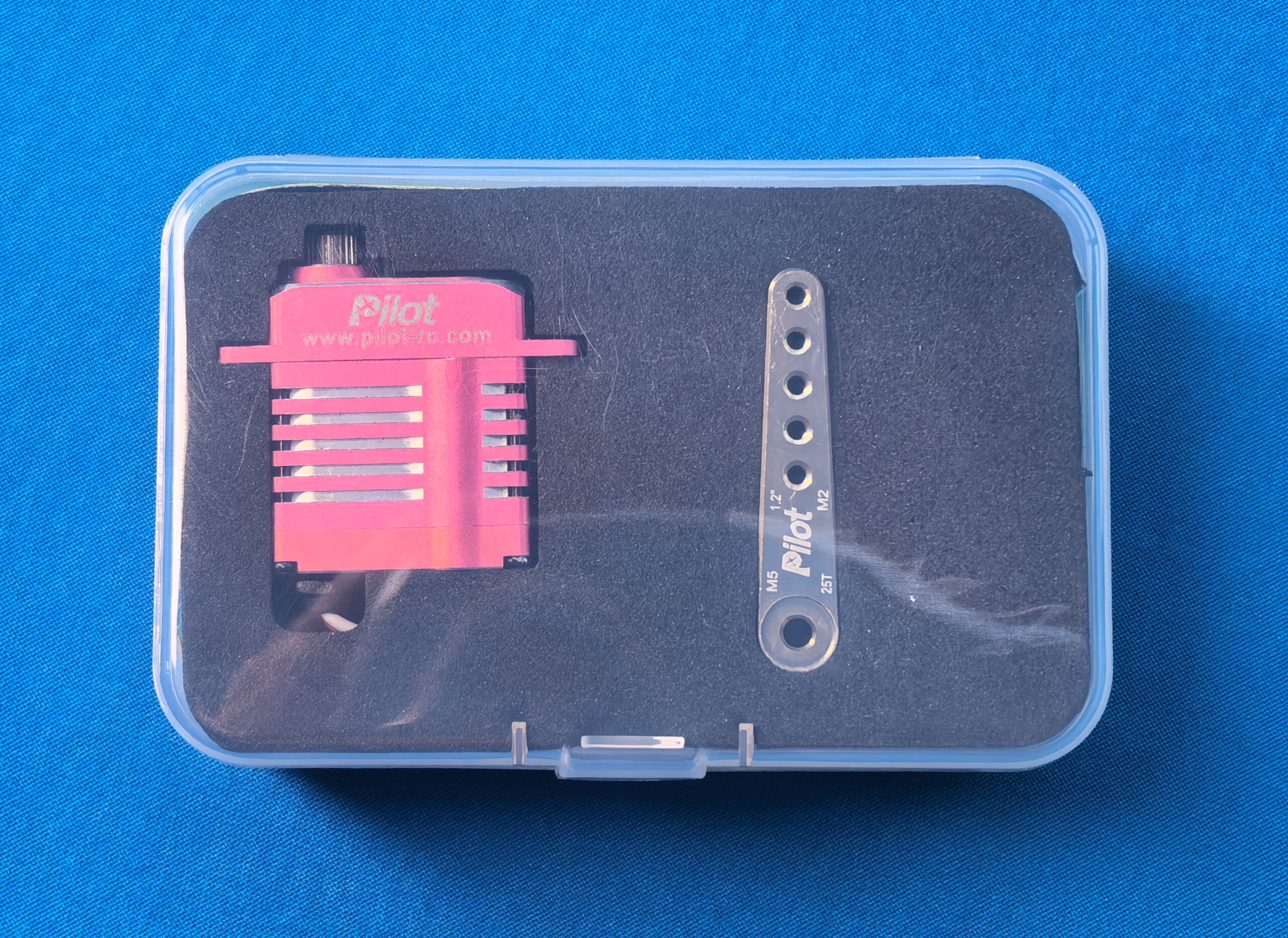

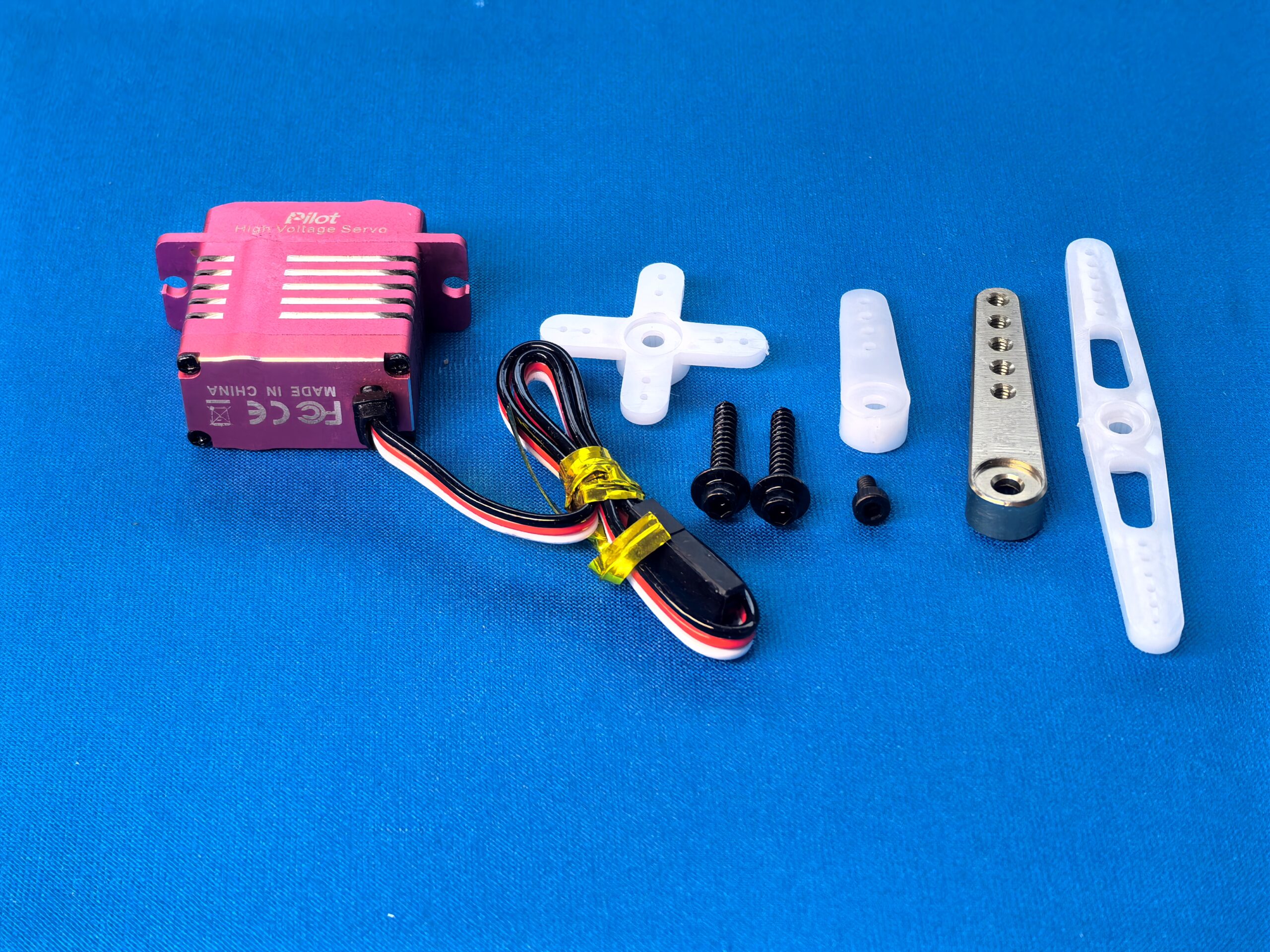

Included:

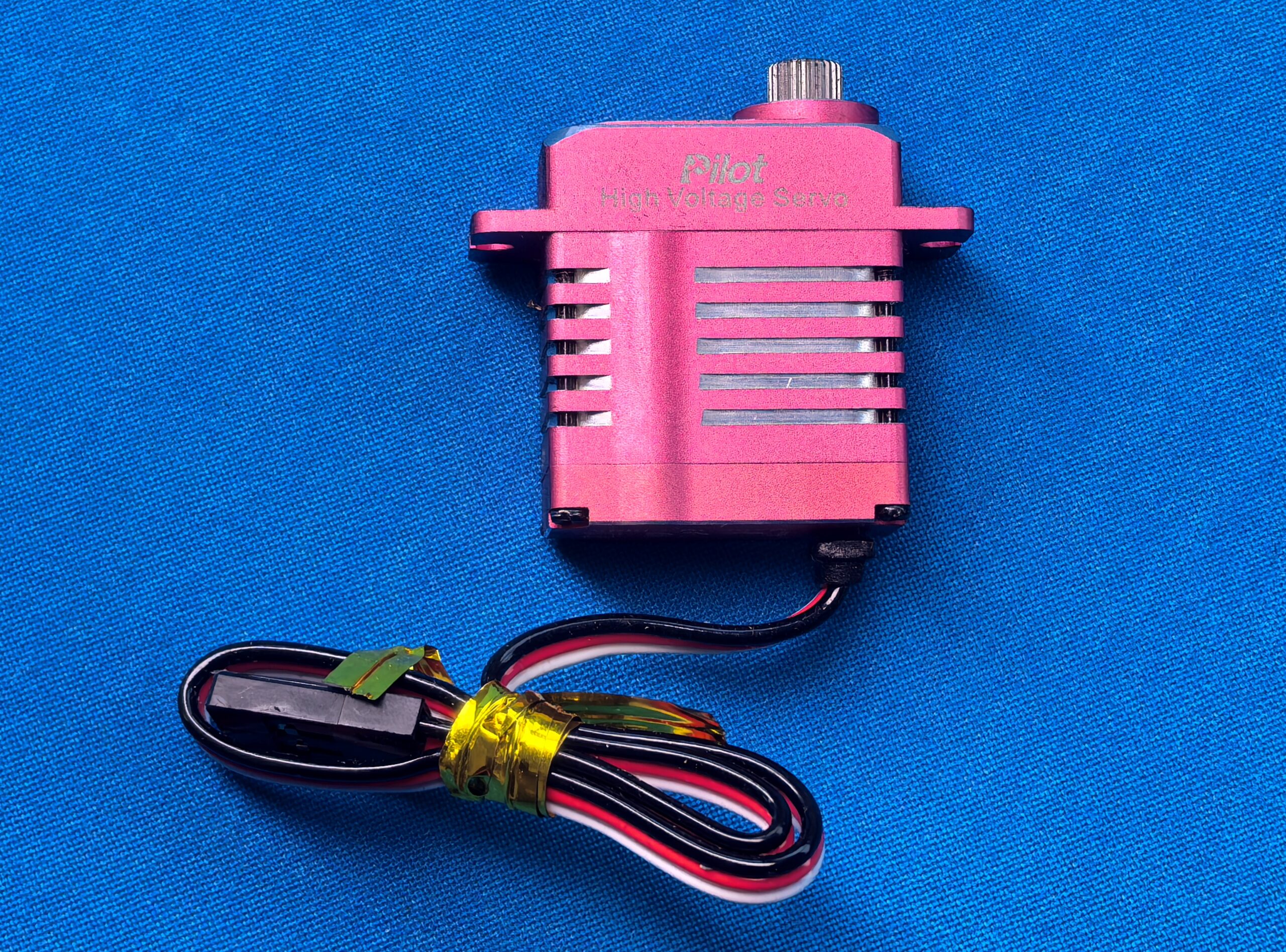

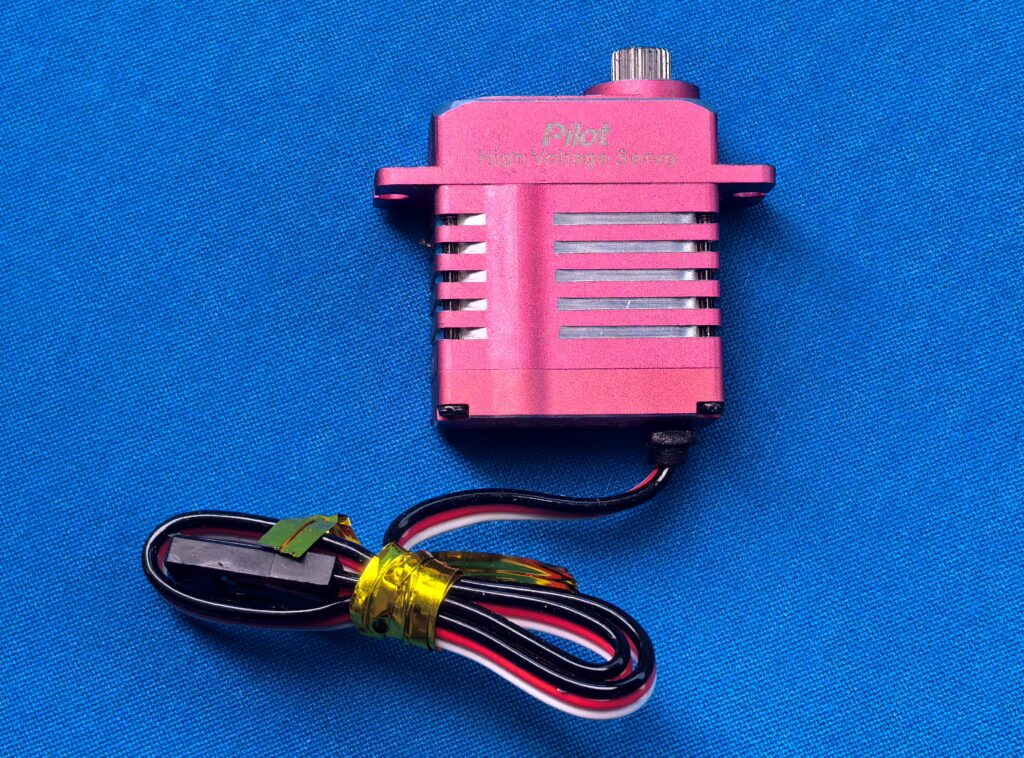

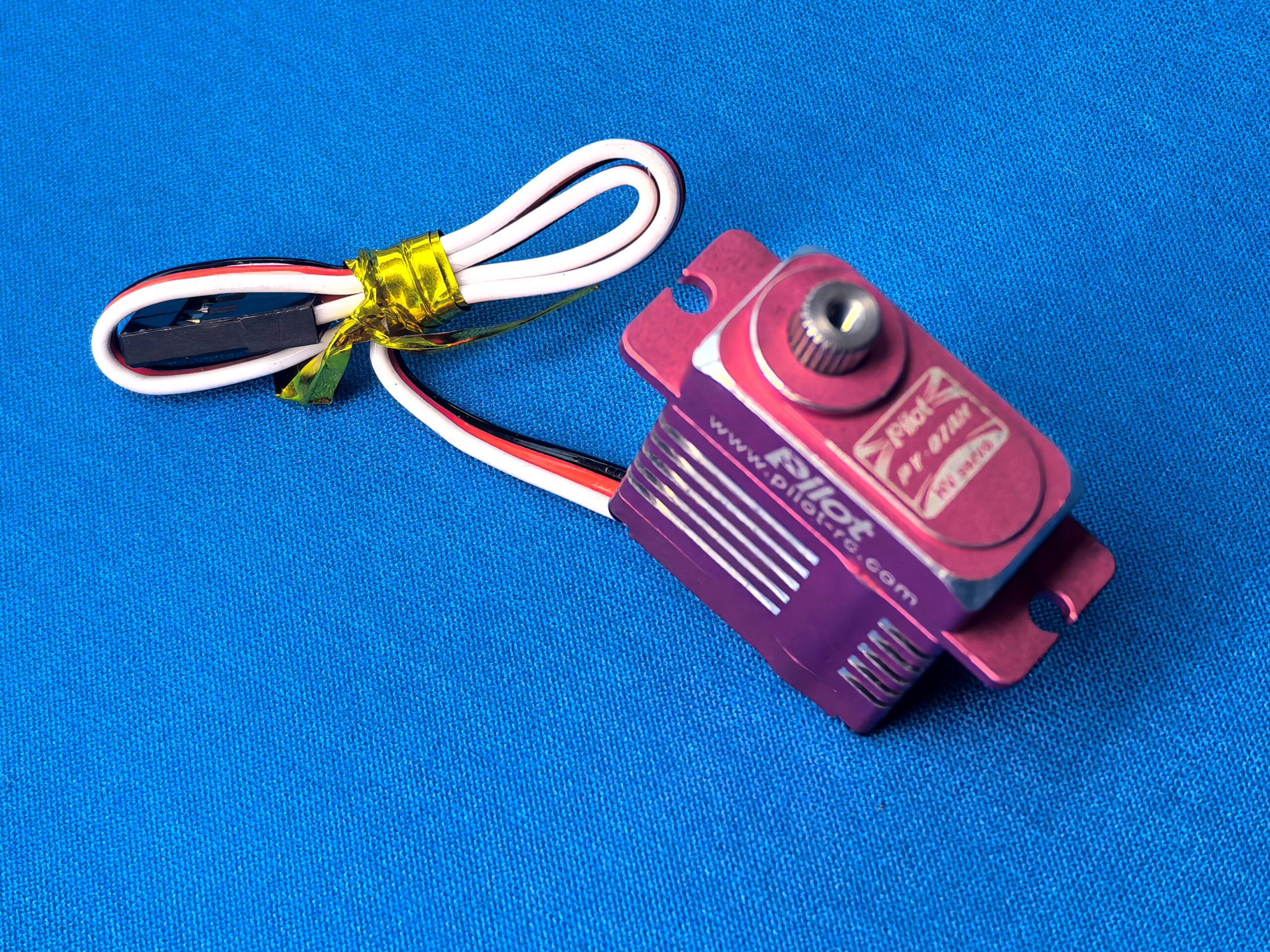

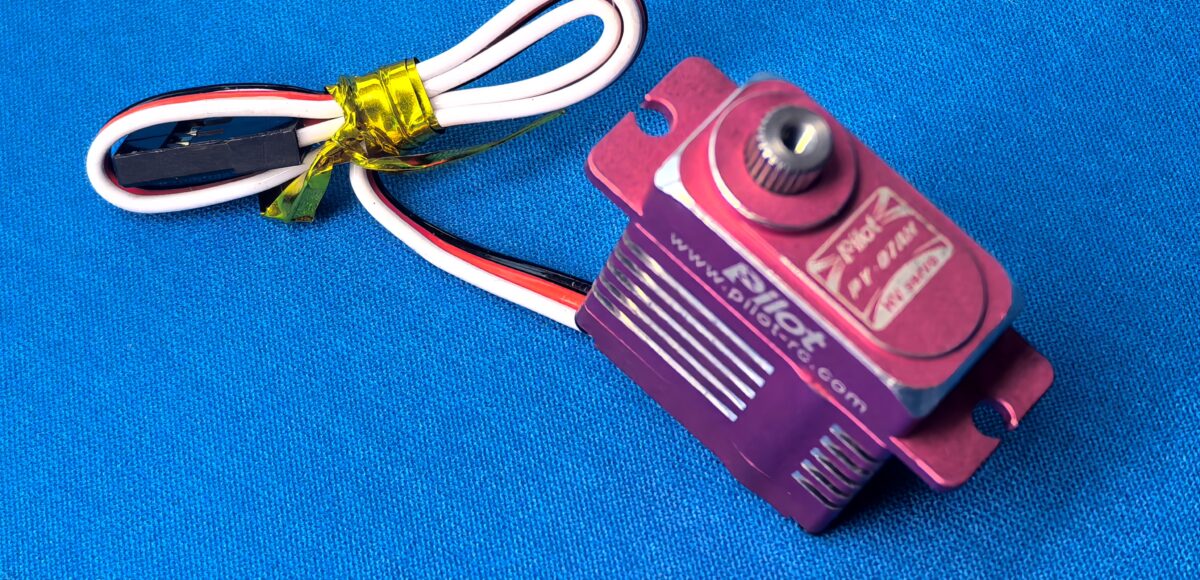

- x1 Pilot-Rc PY07AH servo, with 31cm servo wire

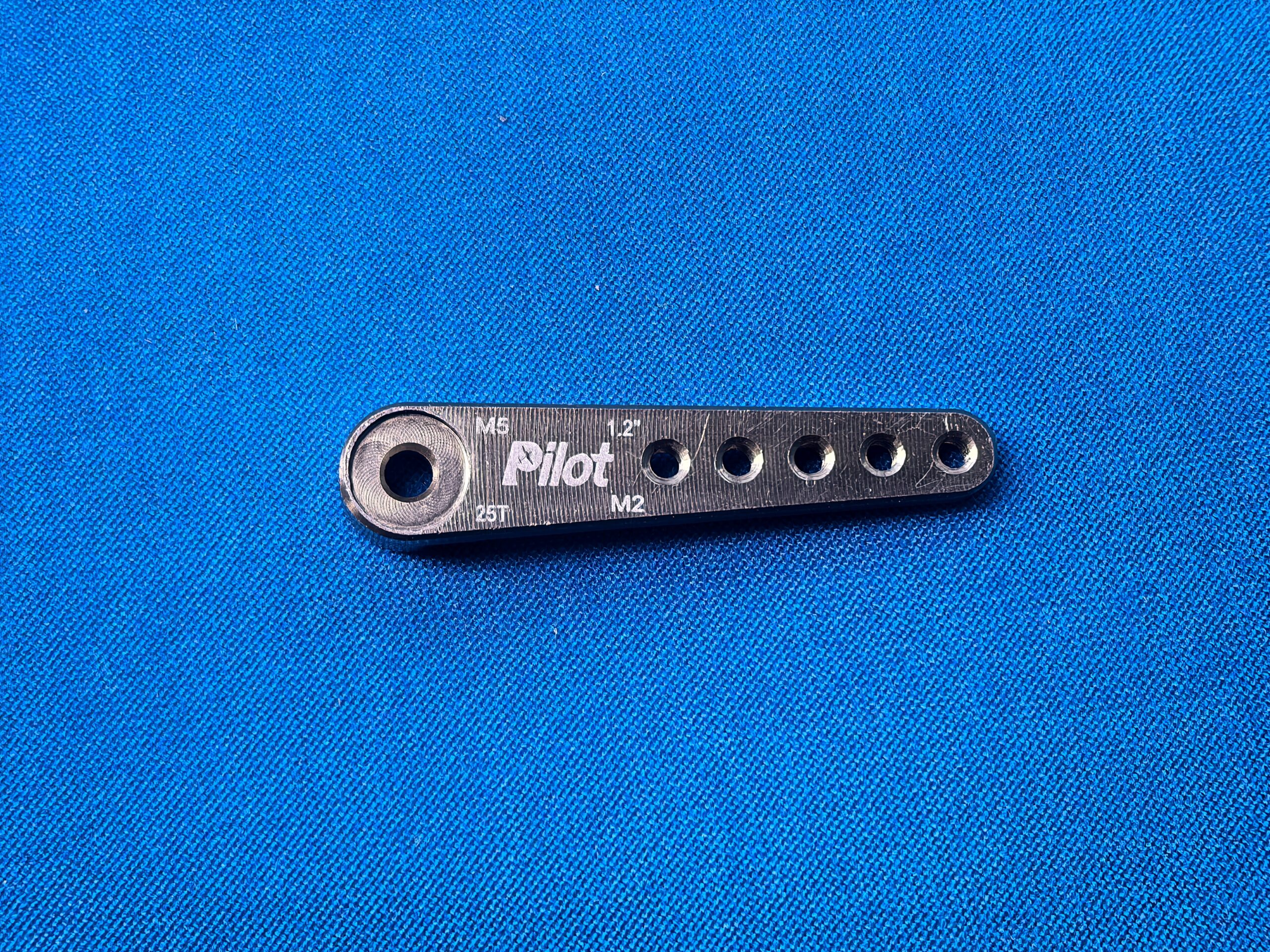

- x1 Pilot-Rc 1,2″ Aluminium servo arm (M2 hole for ball link)
- x1 Double plastic servo arm
- Mounting accessories (screws, rubber grommets and brass eyelets)

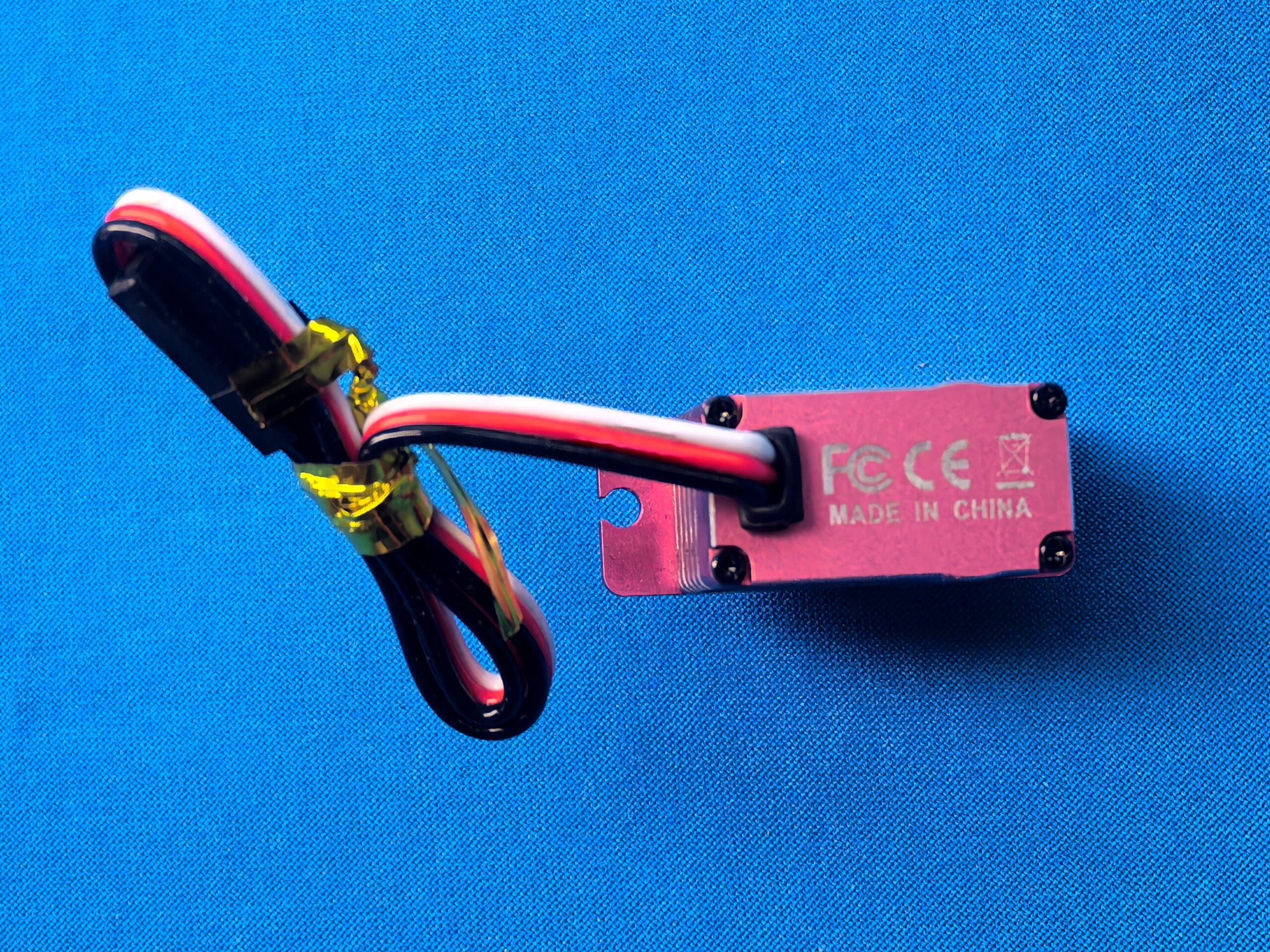

- New design the extension wire is from the back. more easy to put into the servo bay
