this servo are designed around foam Pilot-RC 39″ PP plane which is lightweight and offers high performance torque and speed suitable this 15E size airframe – all at an affordable price

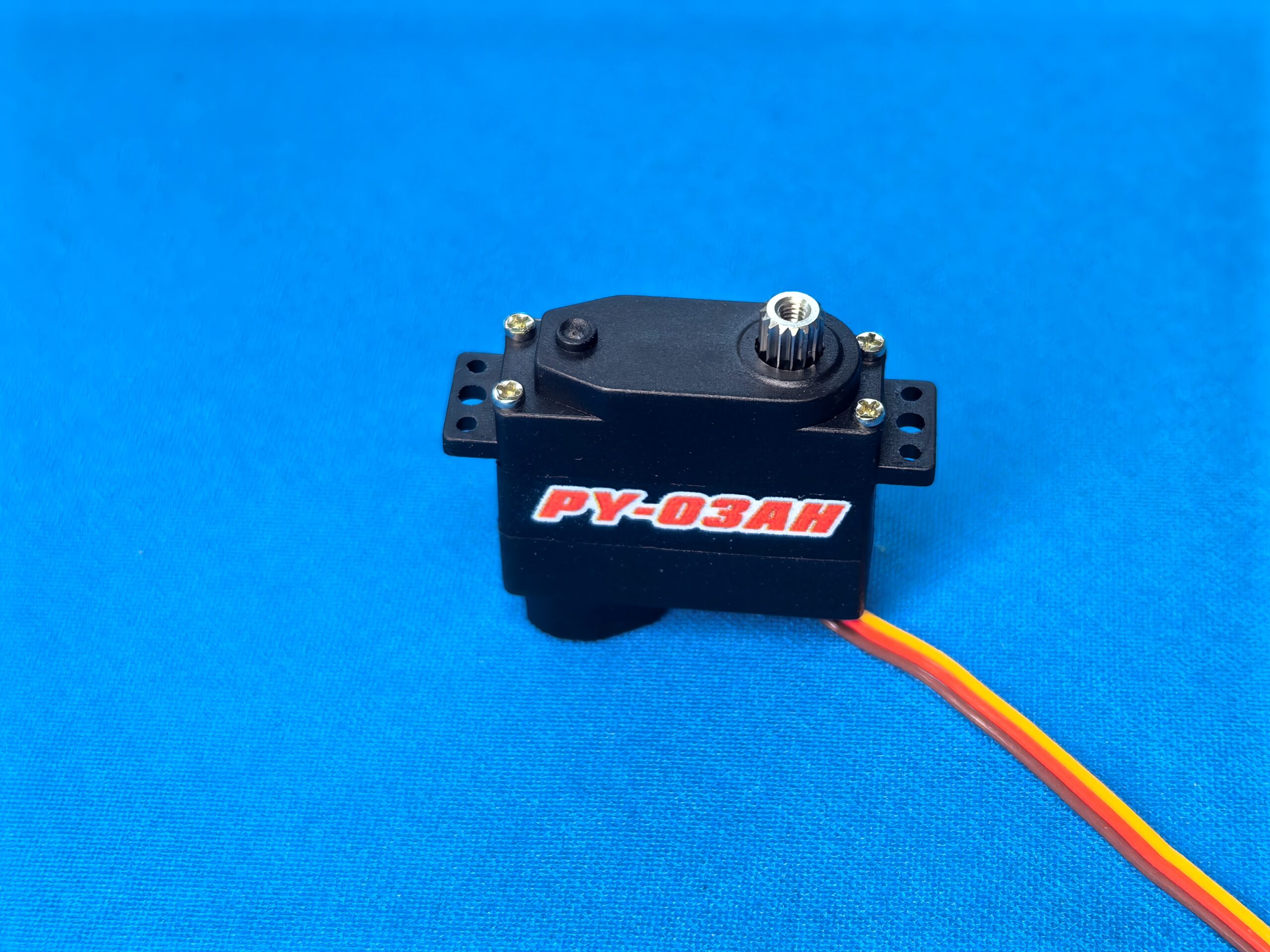

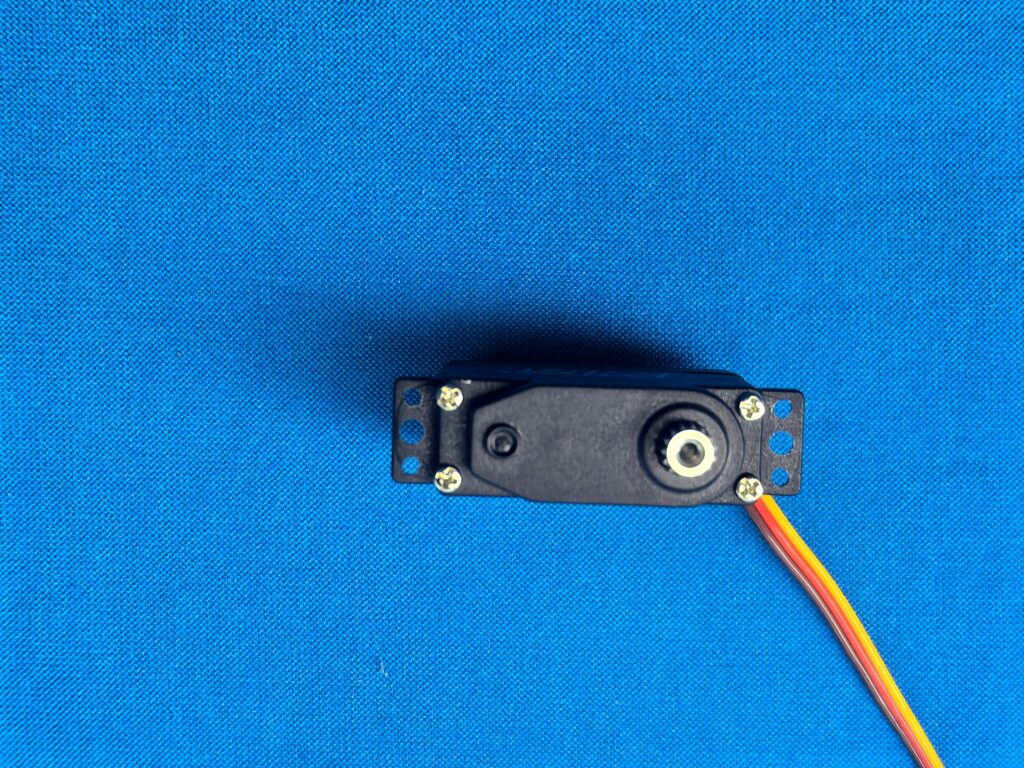

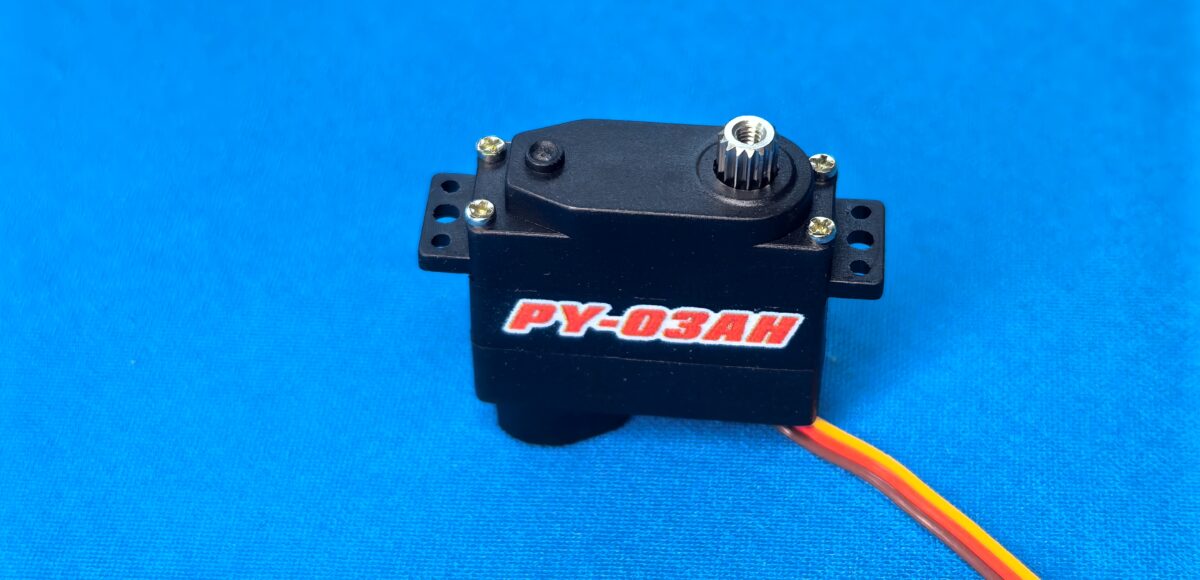

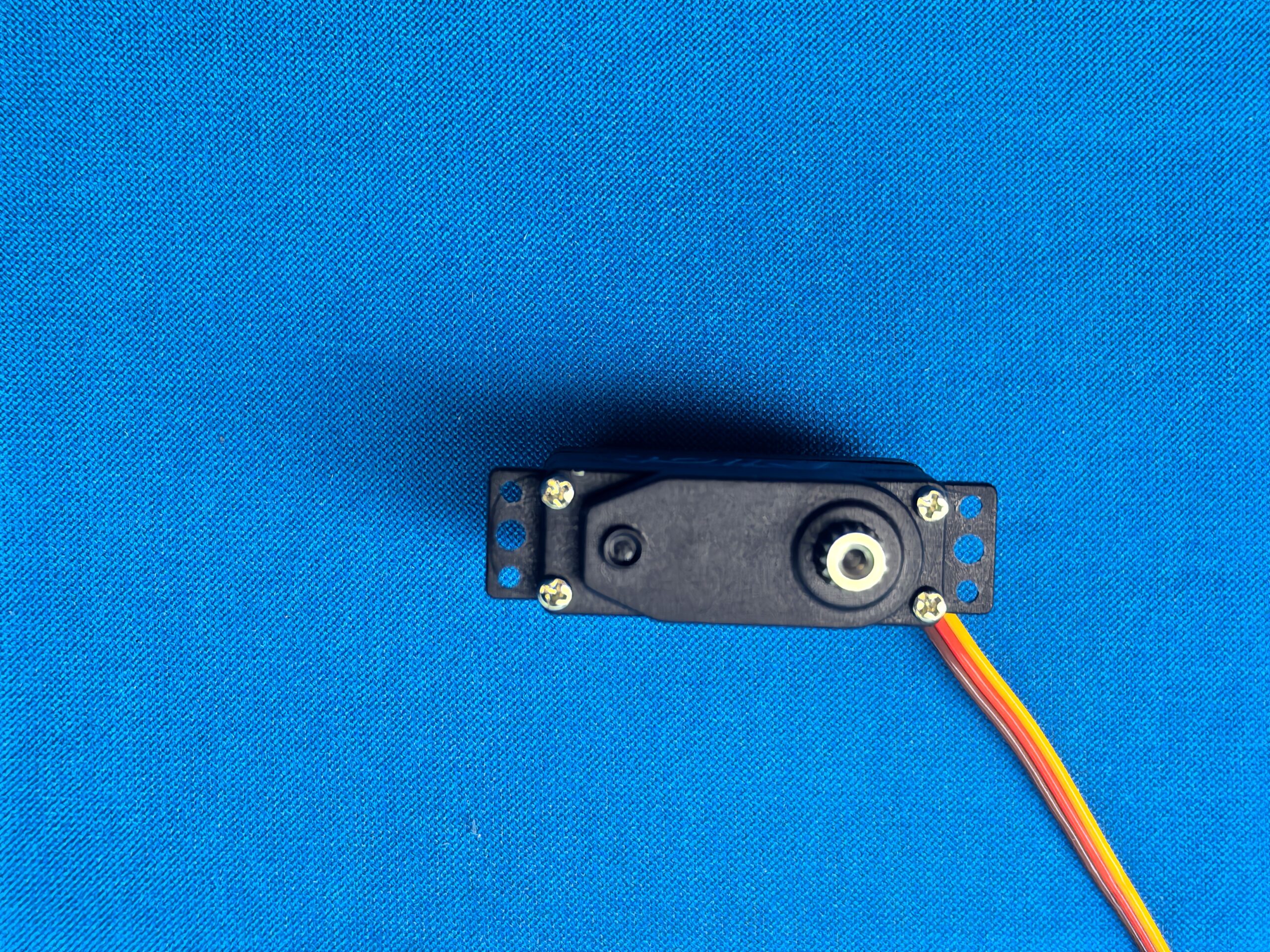

PY-03AH Specifications:
| Type | Micro – coreless Digital |
| Voltage | 5.0v-8.4v |
| Torque | 3.1kg (at 8.4v) 2.8kg (at 7.4v) 2.3kg (at 6.0v) |
| Speed | 0.05s at 8.4v 0.06s at 7.4v 0.08s at 6.0v |
| Weight | 9g |
| Dimensions | 23.5mm x 8.5mm x 24mm |
| Spline | 15T (futaba) |
| Gear | Steel |
| Bearings | Yes (x2) |

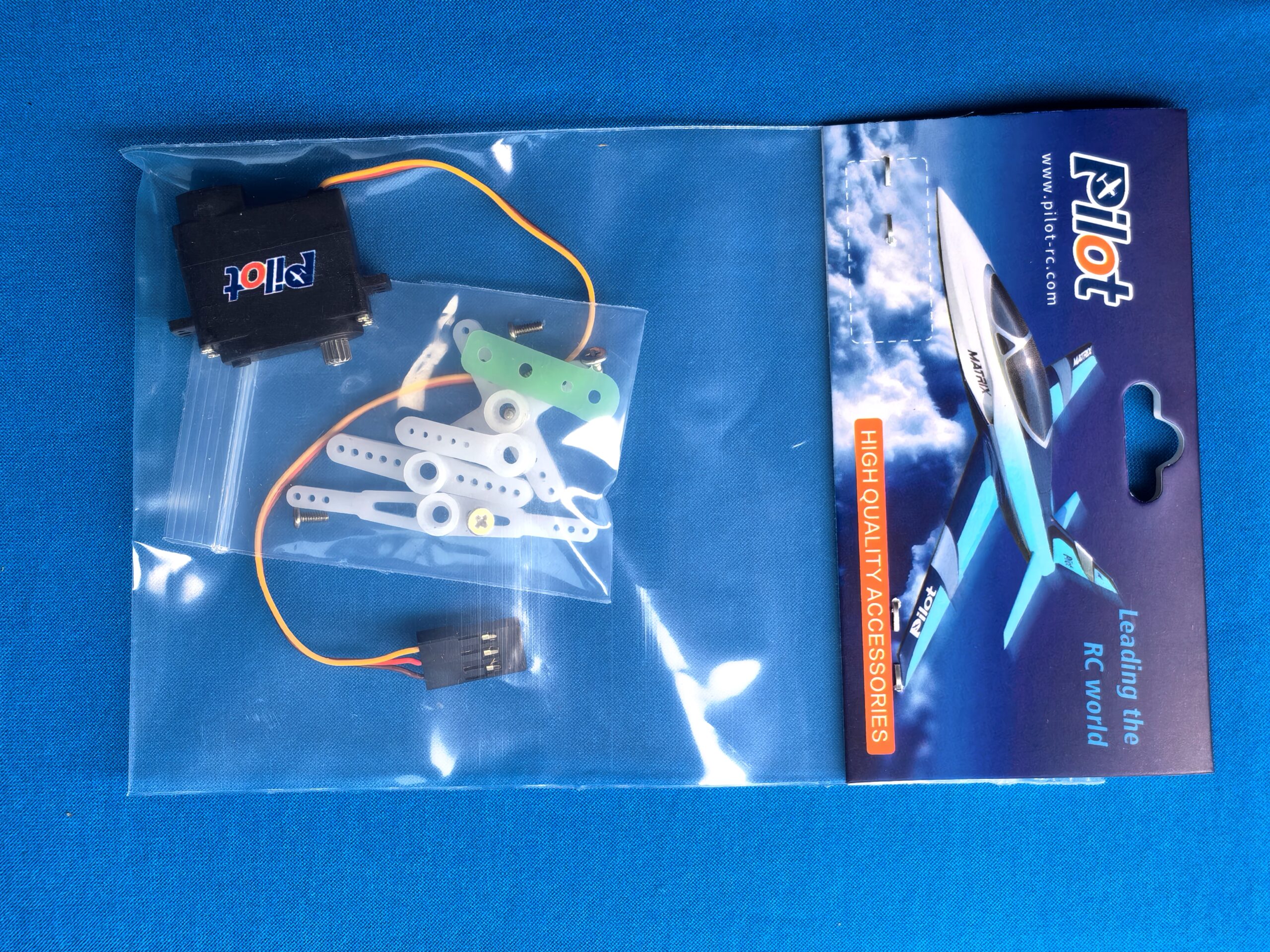

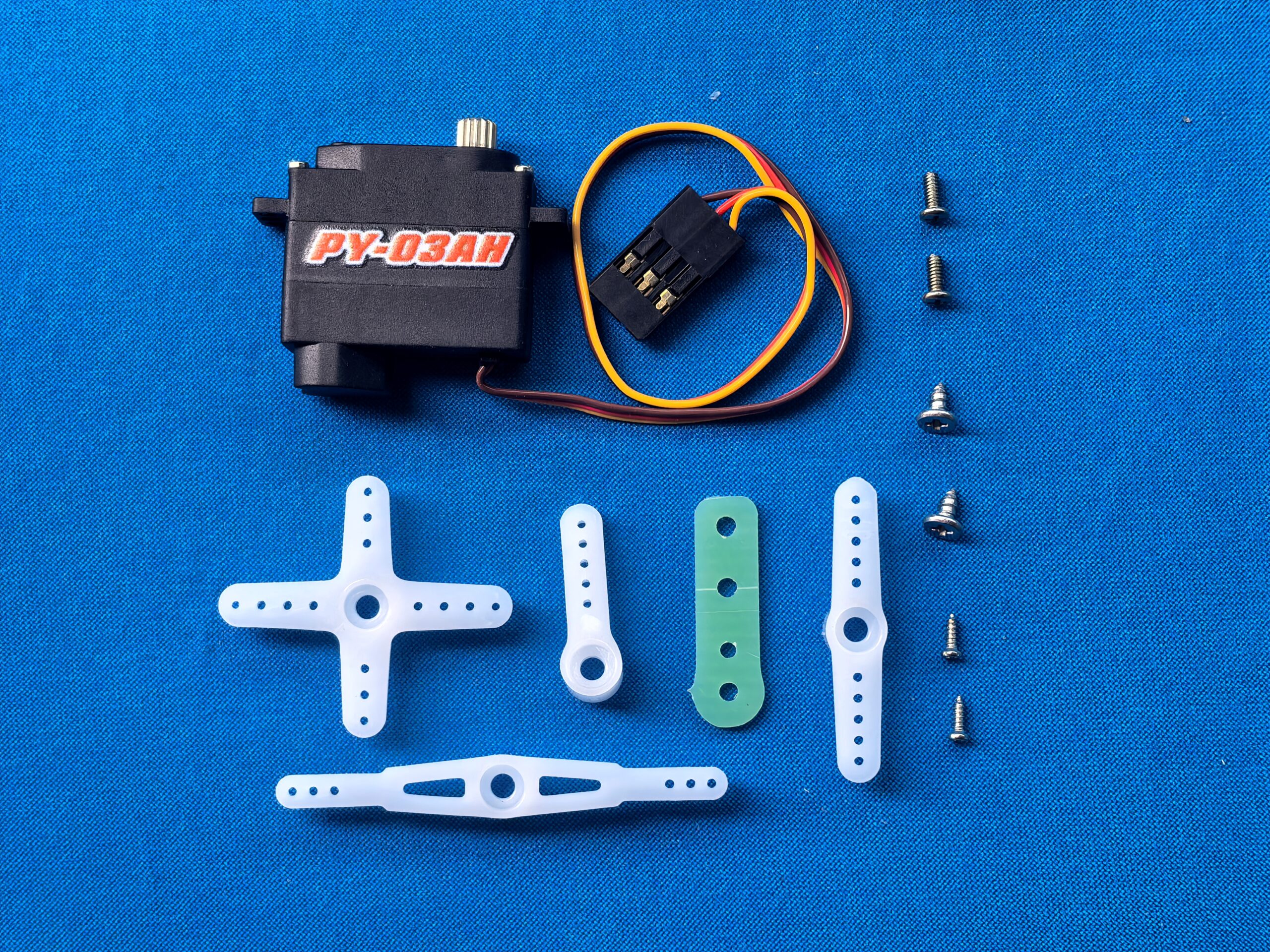

Included:

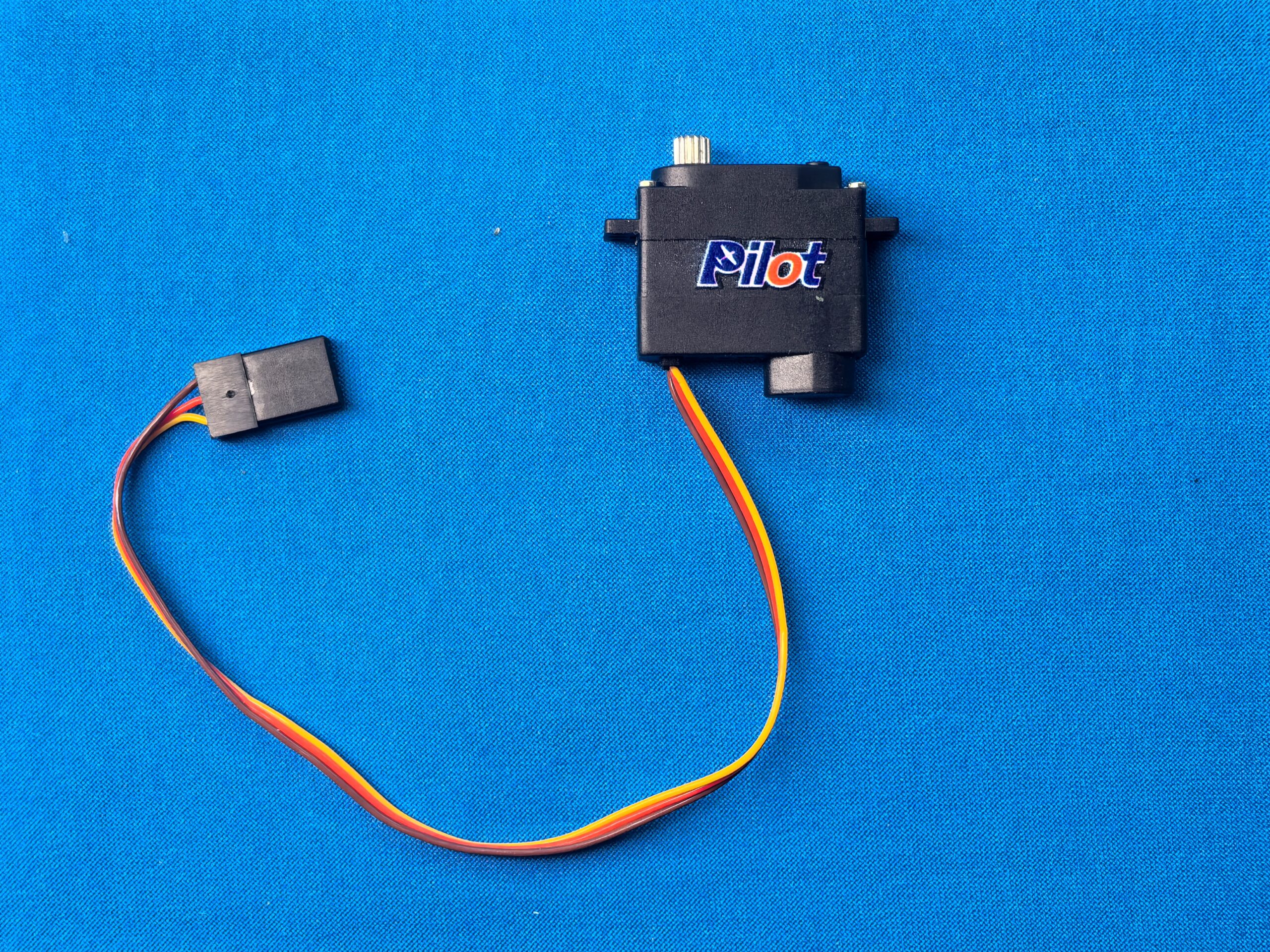

- x1 Pilot-Rc PY03AH servo, with 31cm servo wire

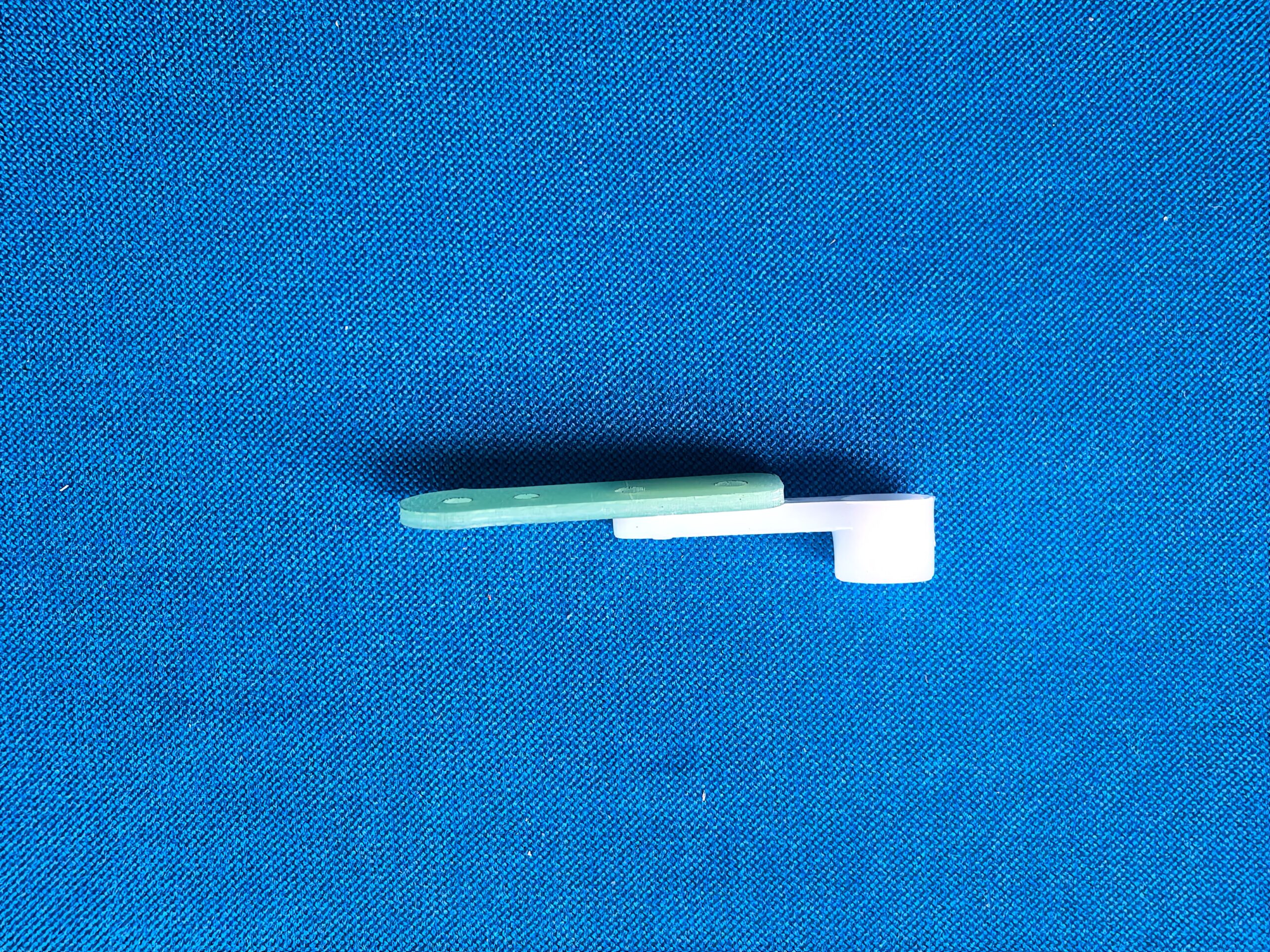

- x1 Double plastic servo arm
- Mounting accessories (screws, rubber grommets and brass eyelets)
- New design the extension wire is from the back. more easy to put into the servo bay
