Matrix 1.8m (73")

after many successful with Predator Jet we decided to develop NEW sportjet for new era. The Pilot-RC Matrix is an innovative approach to a new sport jet. everything aerodynamic we tested and learned from Predator and develop together with one of the best pilot in the world for Matrix performance so we can say this is best ever sport jet with ultimate flying characteristics for precise aerobatics The Matrix all feature and shape of airframe this from one of the best designer Mirco Pecorari from Aircraftstudiodesign, a little like the charismatic hypercars style.

Specifications:

Model:	Matrix Sport Jet
Wingspan:	68.5″ (1,740mm)
Length:	72.6″ (1,844mm)
Weight:	17.5lbs (7.94kg) with 10kg turbine and fuel bag

Video:

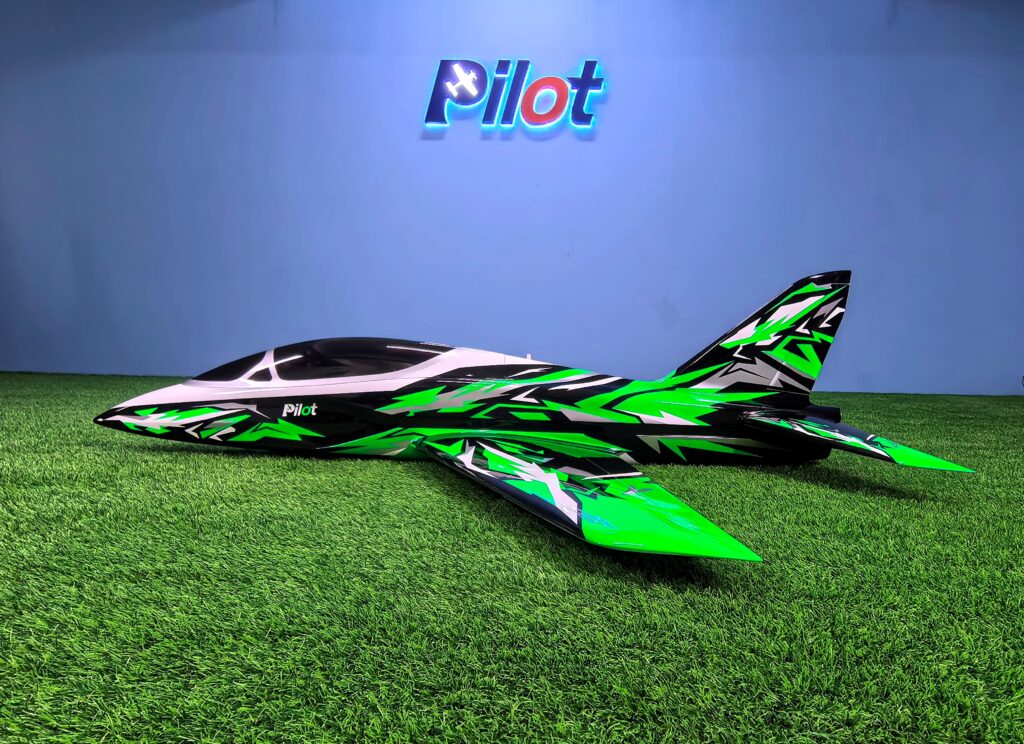

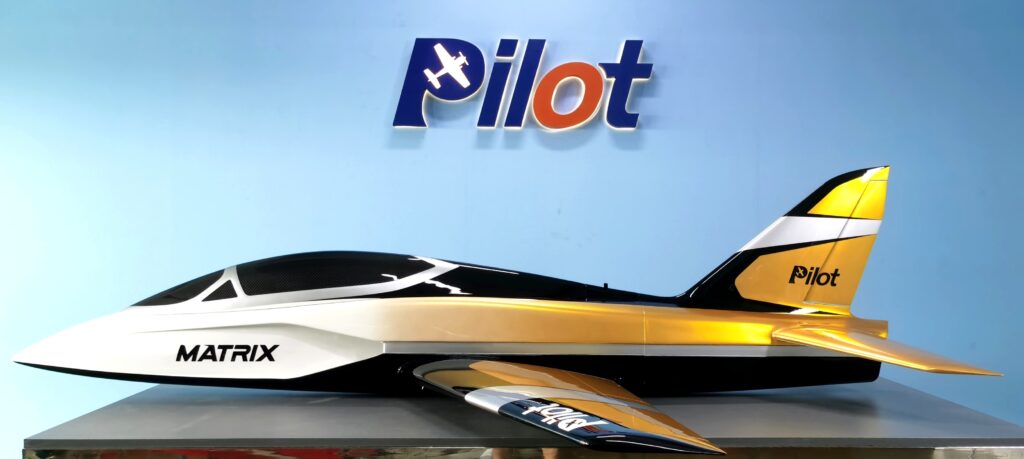

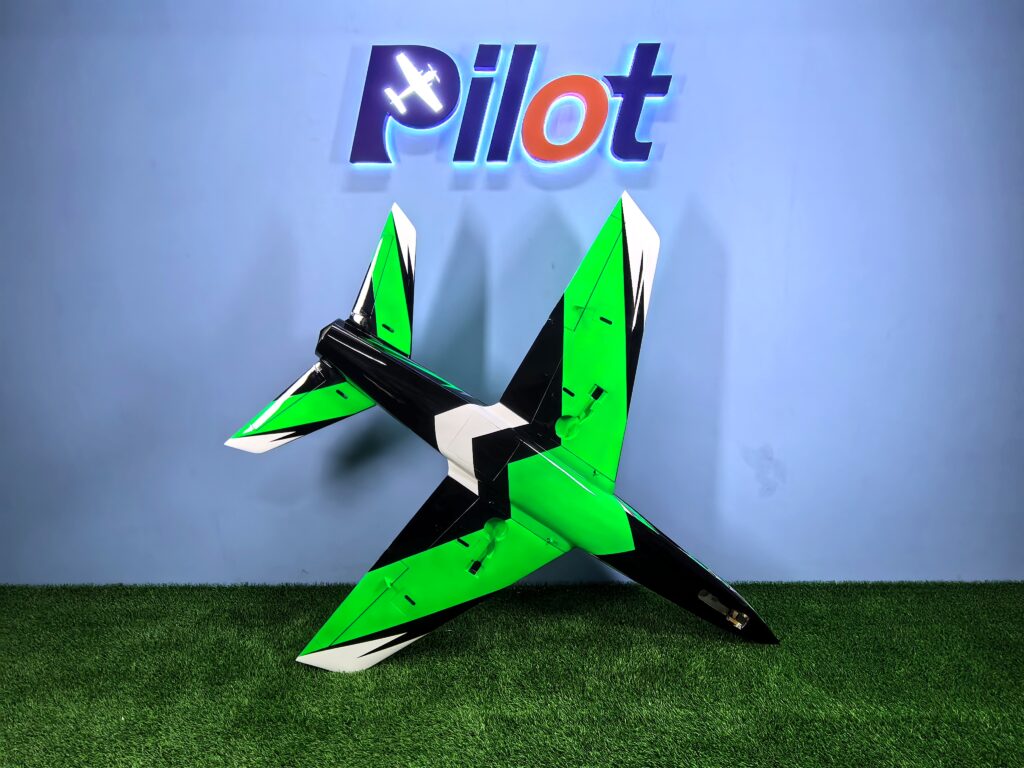

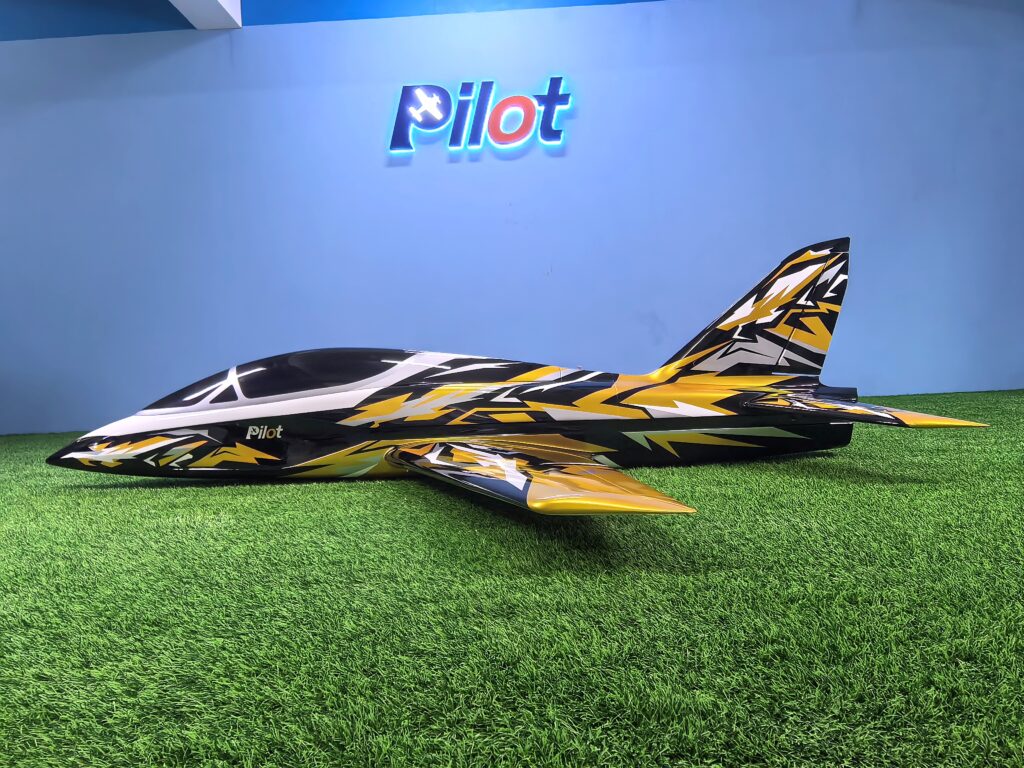

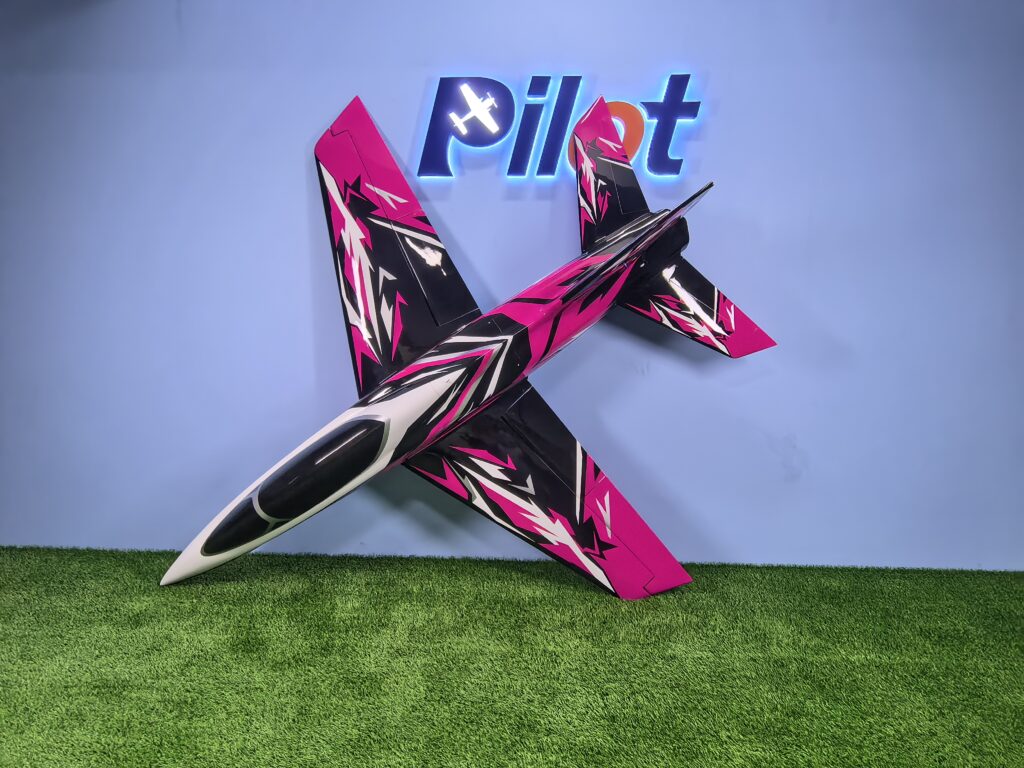

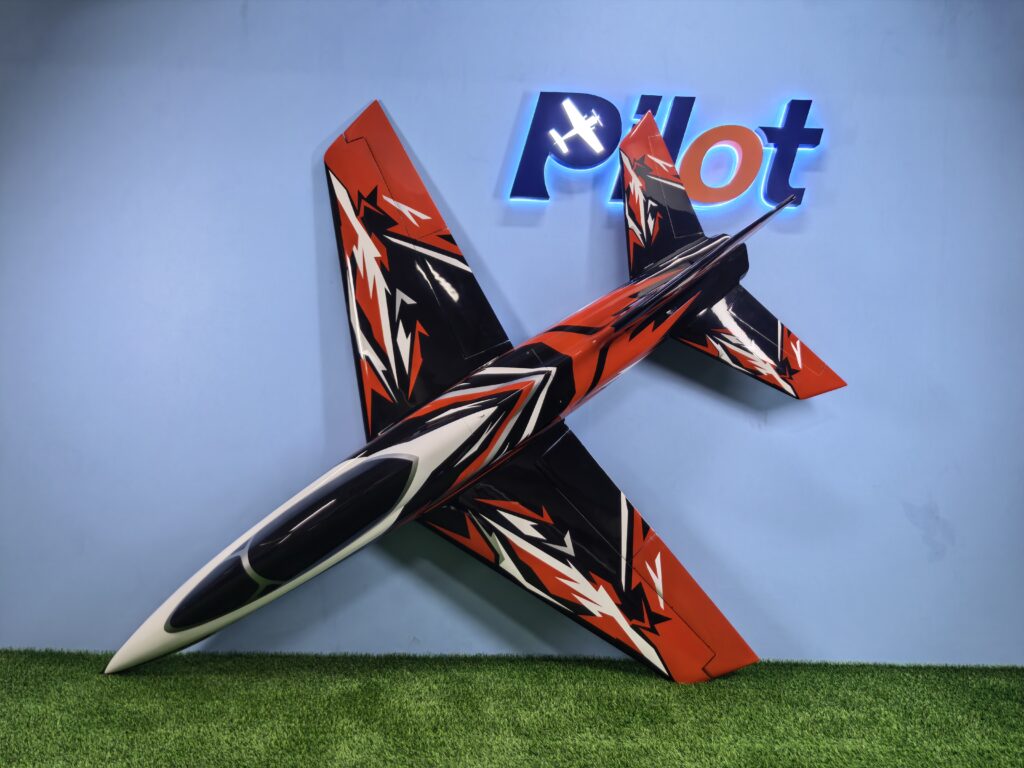

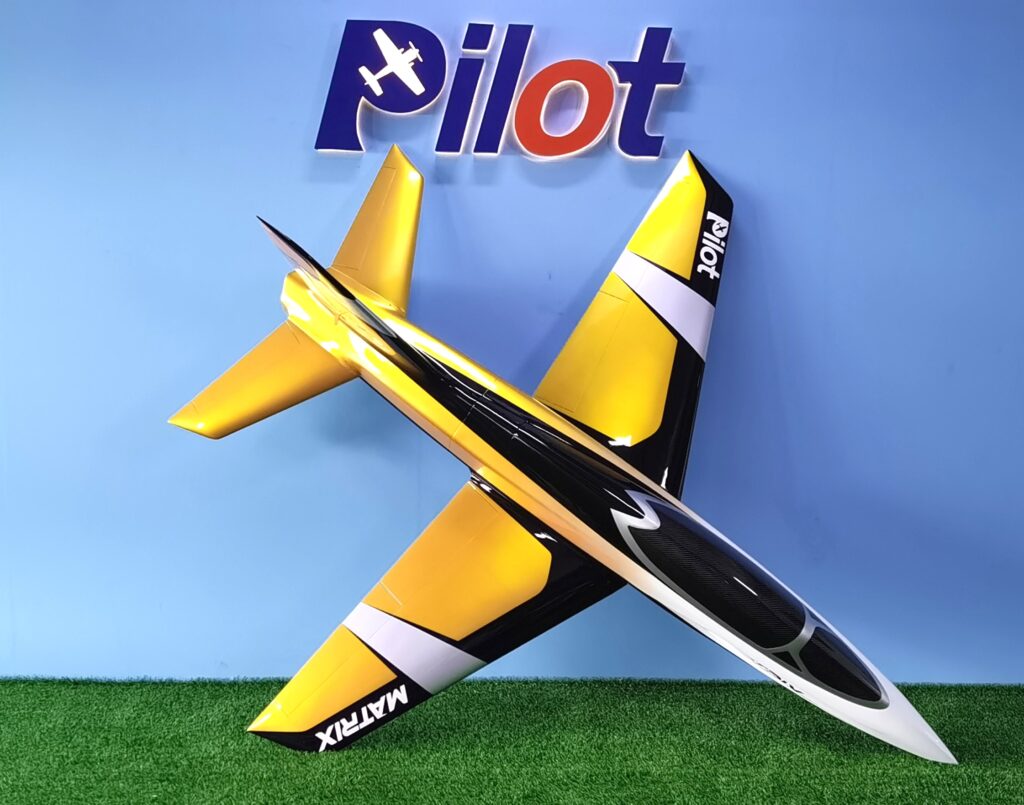

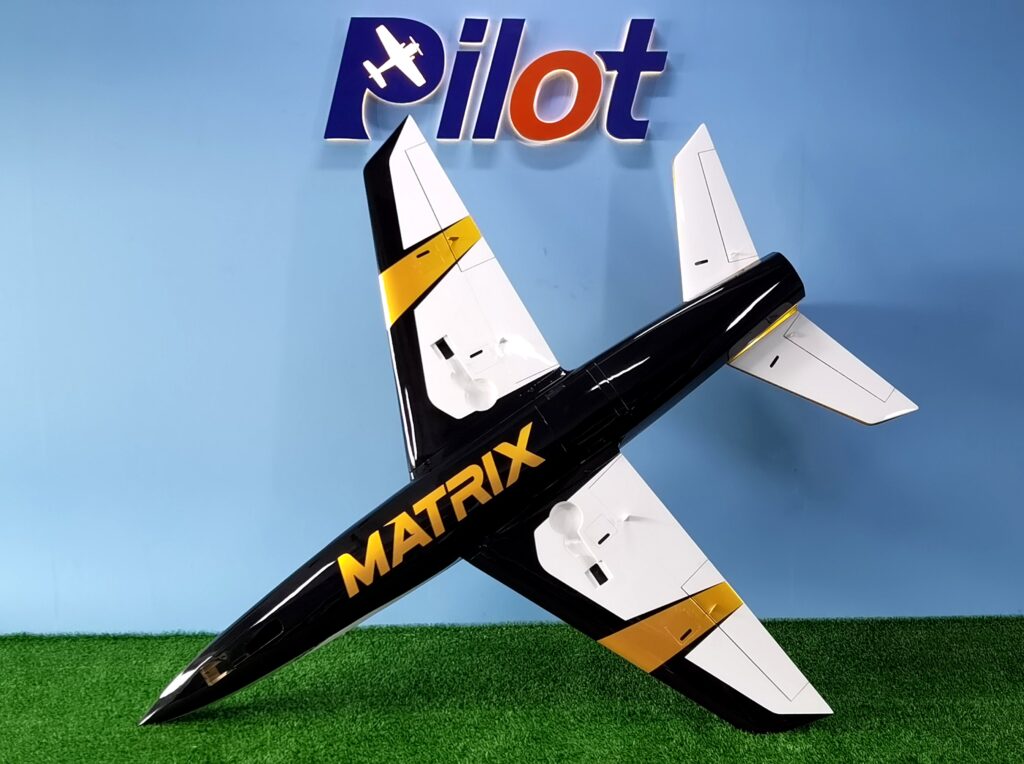

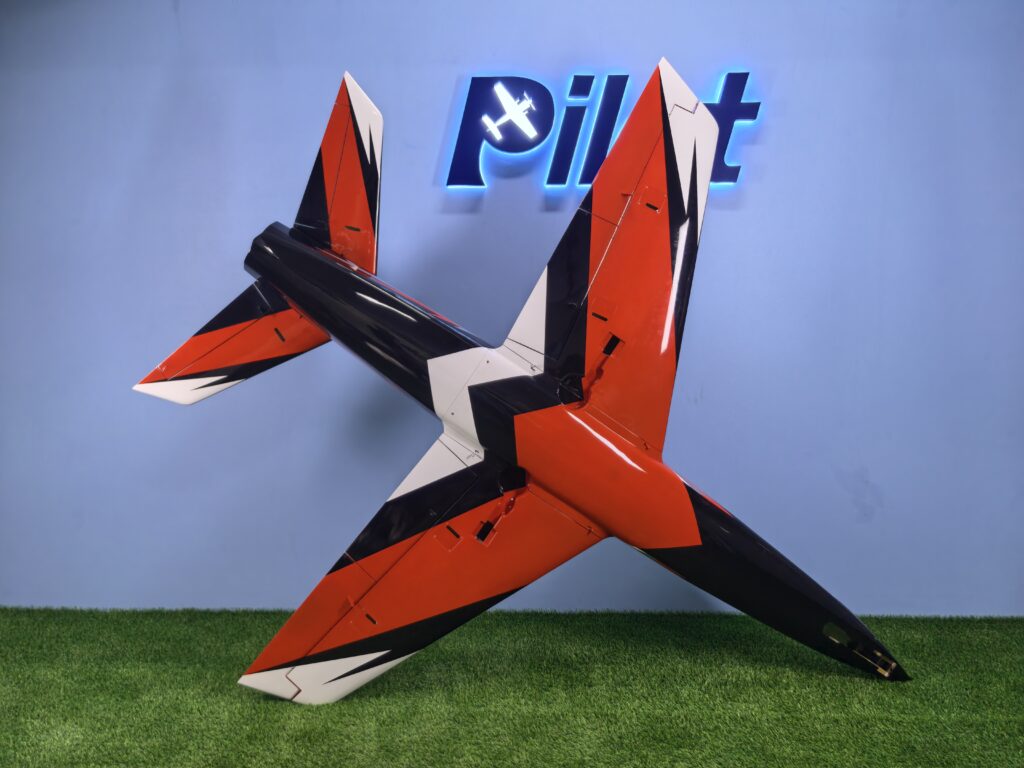

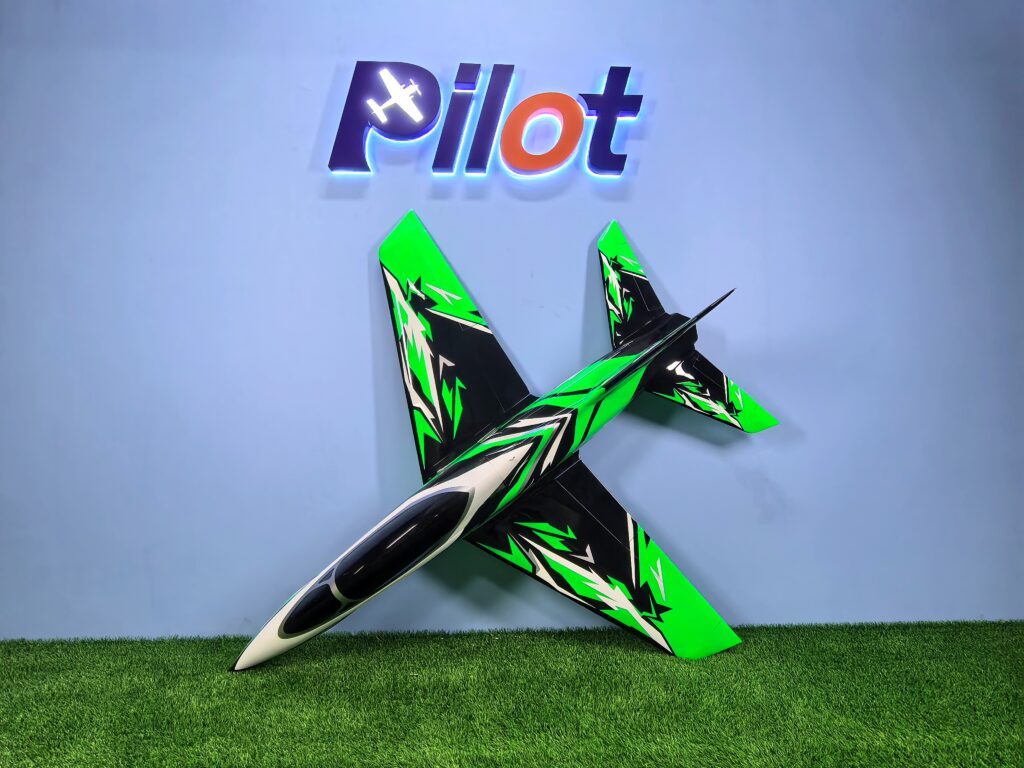

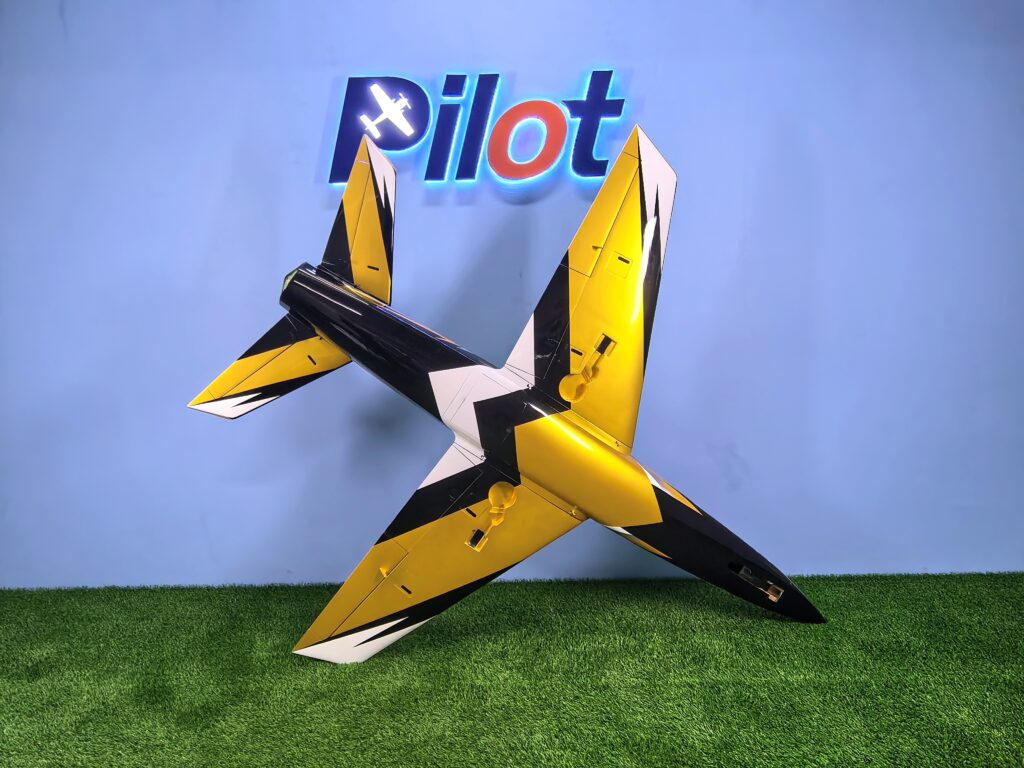

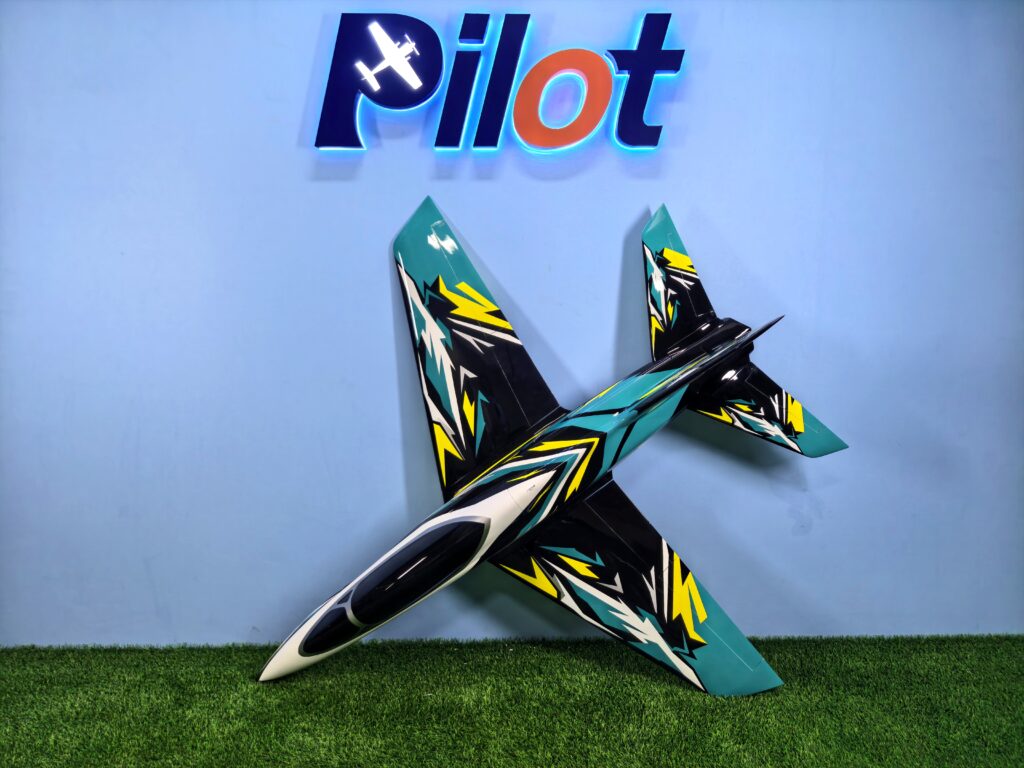

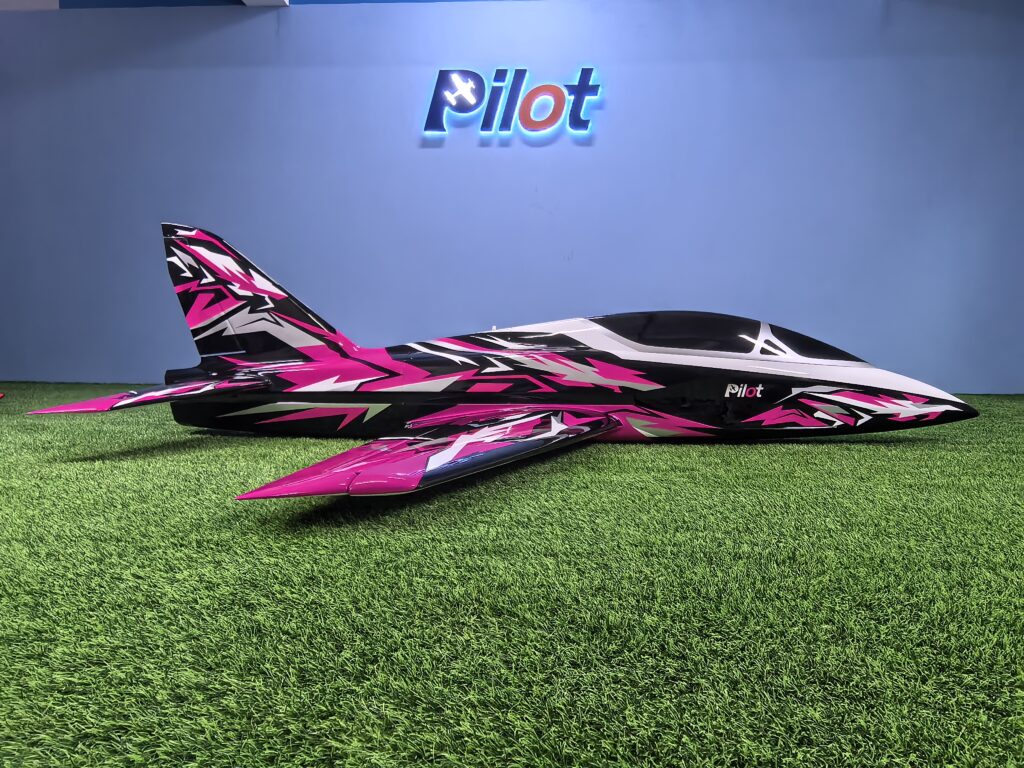

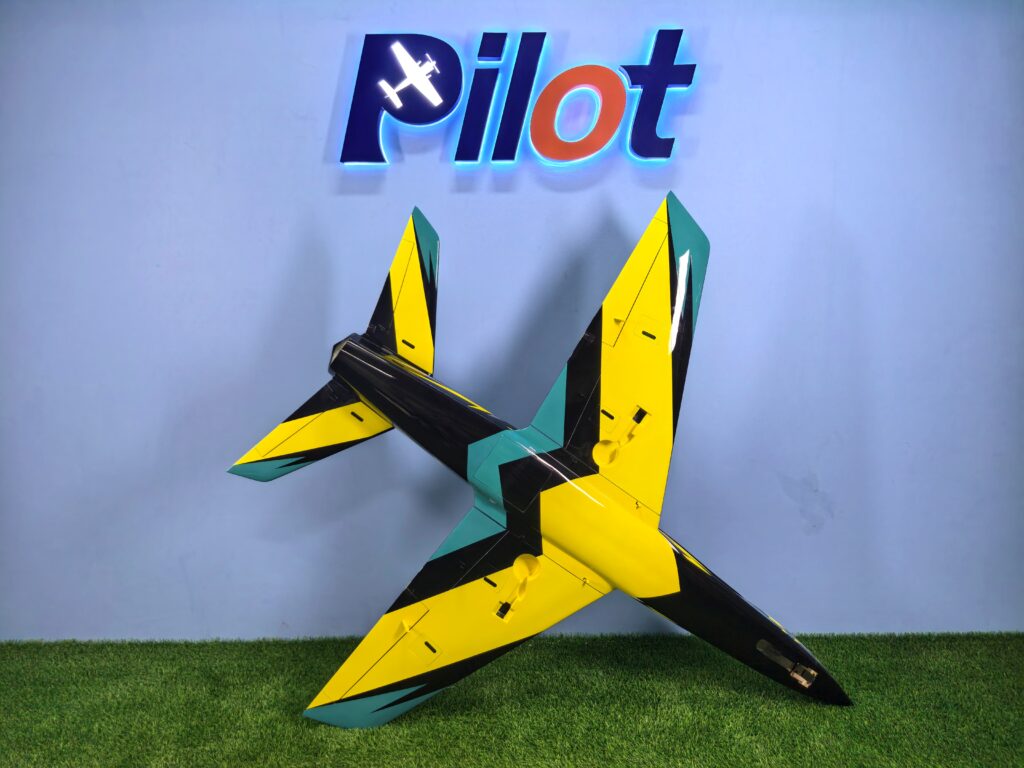

GALLERY:

FEATURES:

Extremely lightweight full composite construction especially designed for outstanding sport flight
Painted outside the mold so no seam lines
Ultra light weight landing gear, 1.8m predator sport jet landing gear can use to the Matrix too.
Specially designed easy access to turbine for speedy installation
Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools.
the single elevator clamp from the top, only a few turns to tight/loose the bolt then you can install/take out the stabilizer.
Removable wing and elevator for easy transport
The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidened.
pre-install tube for the stab/rudder extension wire, easy to install.

Included hardware:

Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
Servo extension leads
normal tail pipe
2.000ml fuel tank (optional upgrade to fuel bag)
250ml UAT tank
Pre-prepared pushrods with ball links
Servo connector brackets

*Also available: TR(turbine ready) version 1.8m Matrix jet with fuel tank and air trap, normal tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. without wing bag/fuselage bag

Required hardware:

Turbine size:

060-100N

Servos: Total x8 medium servo (size: 35x15x30mm), the flaps and rudder can install the standard servo as well.
x2 for flaps (minimum 16kg)
x1 for rudder (minimum 16kg)
x2 for ailerons (minimum 16kg)
x2 for elevators (minimum 16kg)
x1 for steering (minimum 10kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
