Extra NG – 103″ (2.63m)

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

Specifications:

Model:Extra NG
Wingspan:103″ (2.630mm)
Length:97.2″ (2.470mm)
Wing area:1,843″² (11,890cm²)
Weight:27.72lbs (12.6kg)

Video:

CARBON COVERING ON SCHEME 02:

COWL AND WHEEL PANTS WITH SCALE DETAILING:

“SPARE” transparent cowl for easy markings:

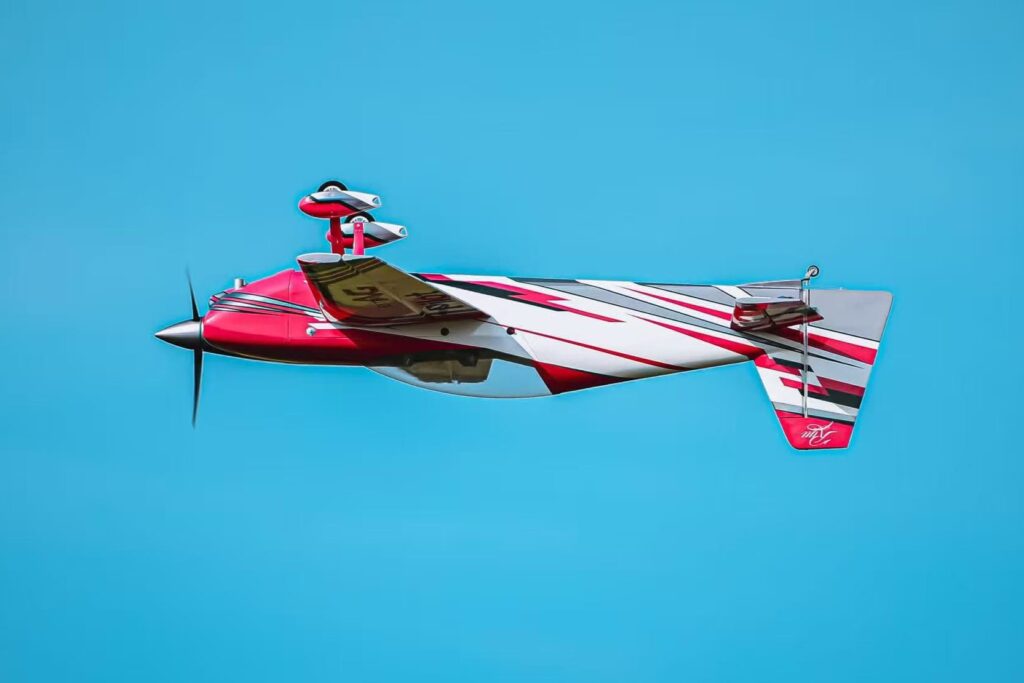

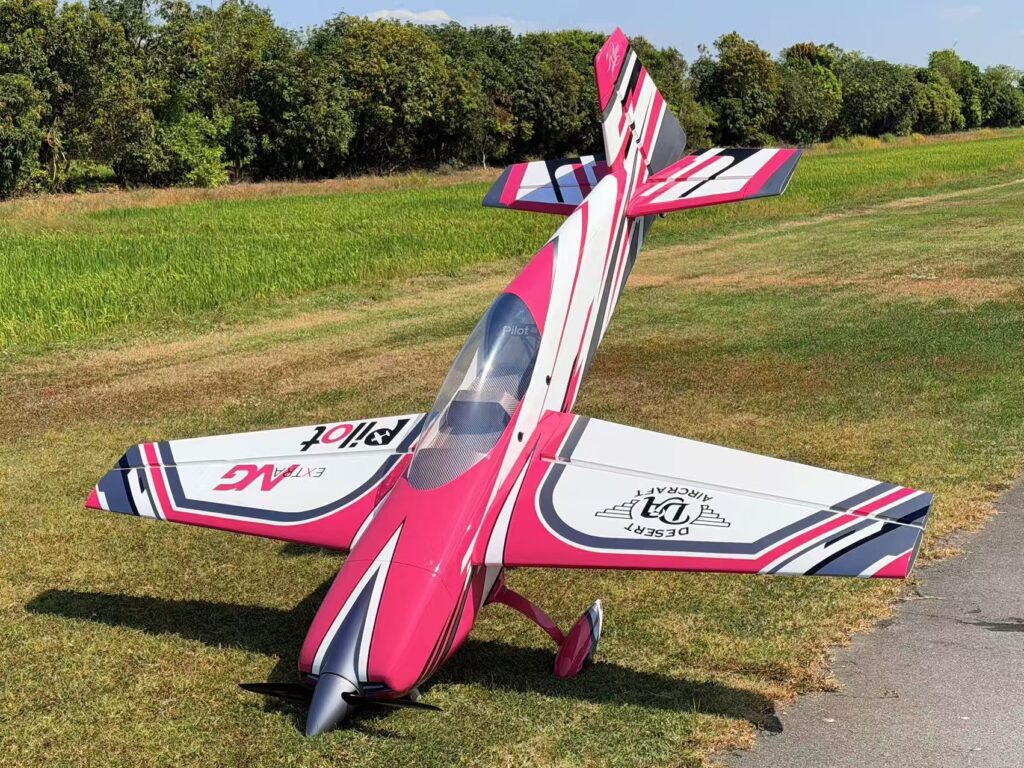

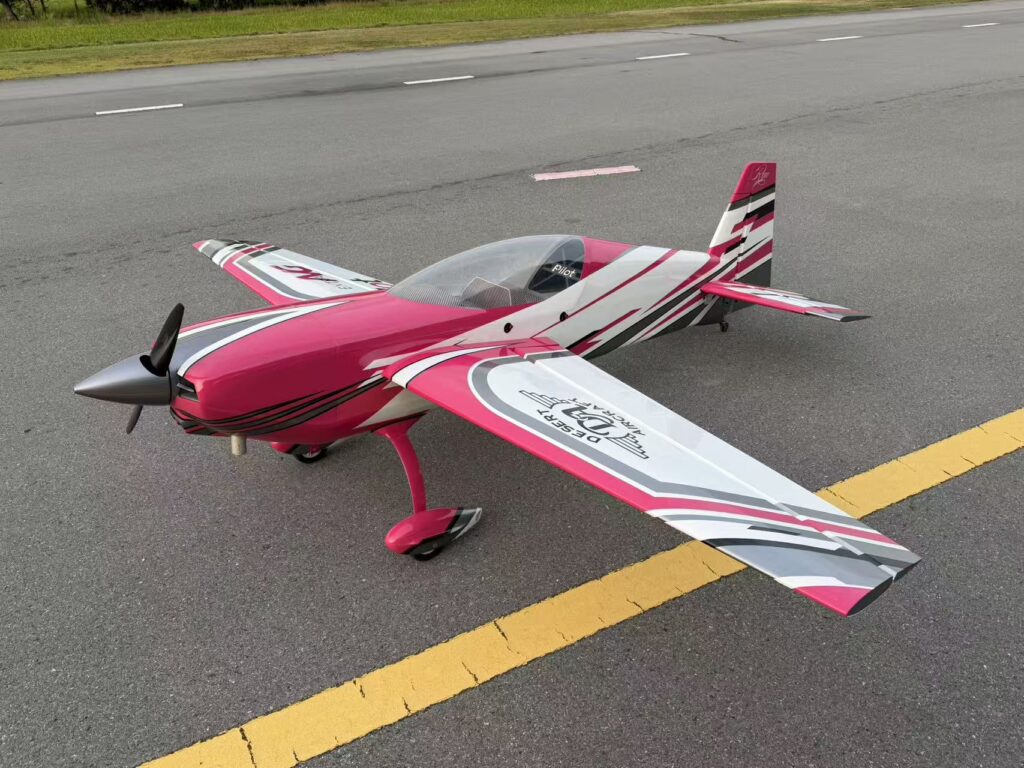

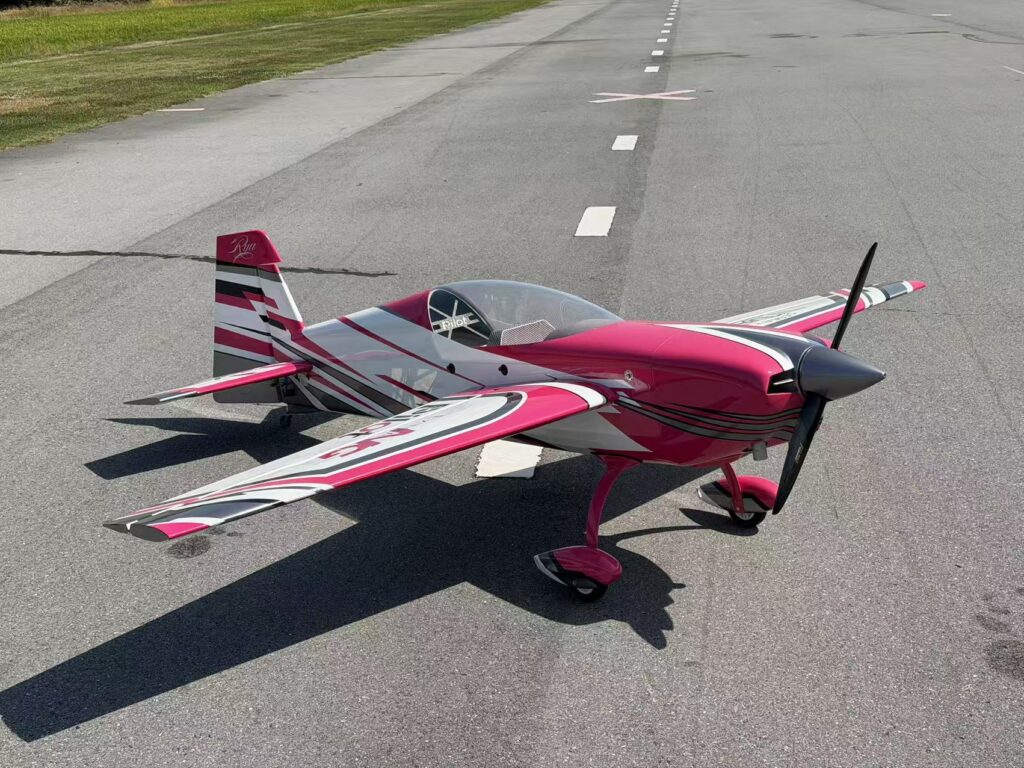

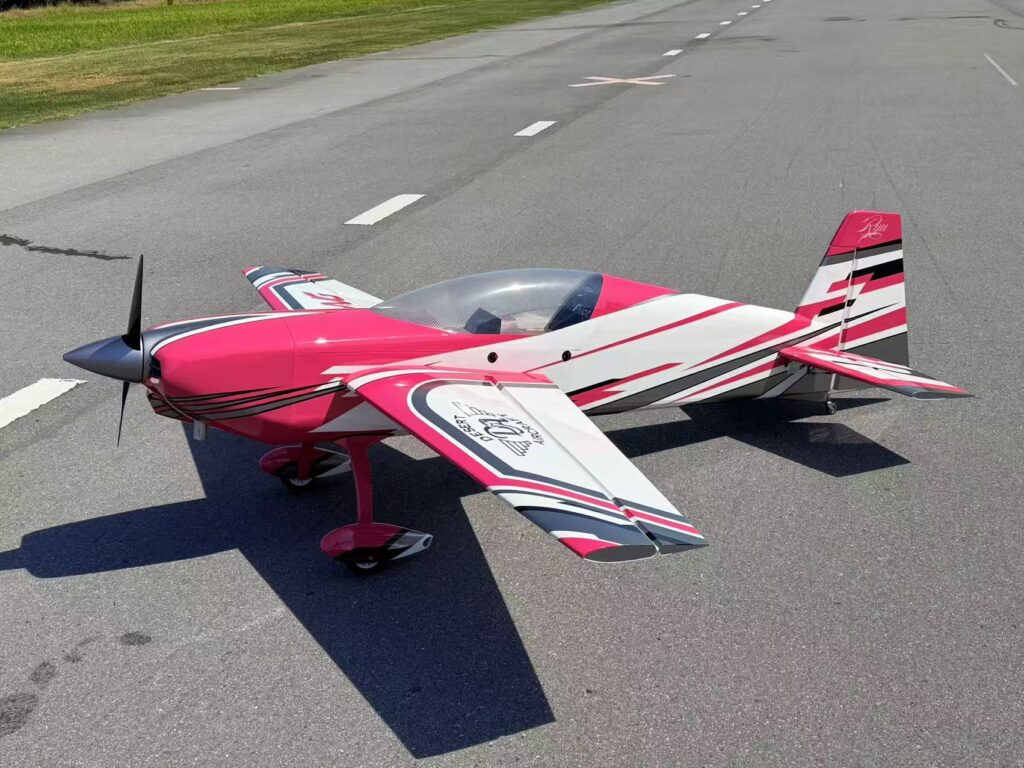

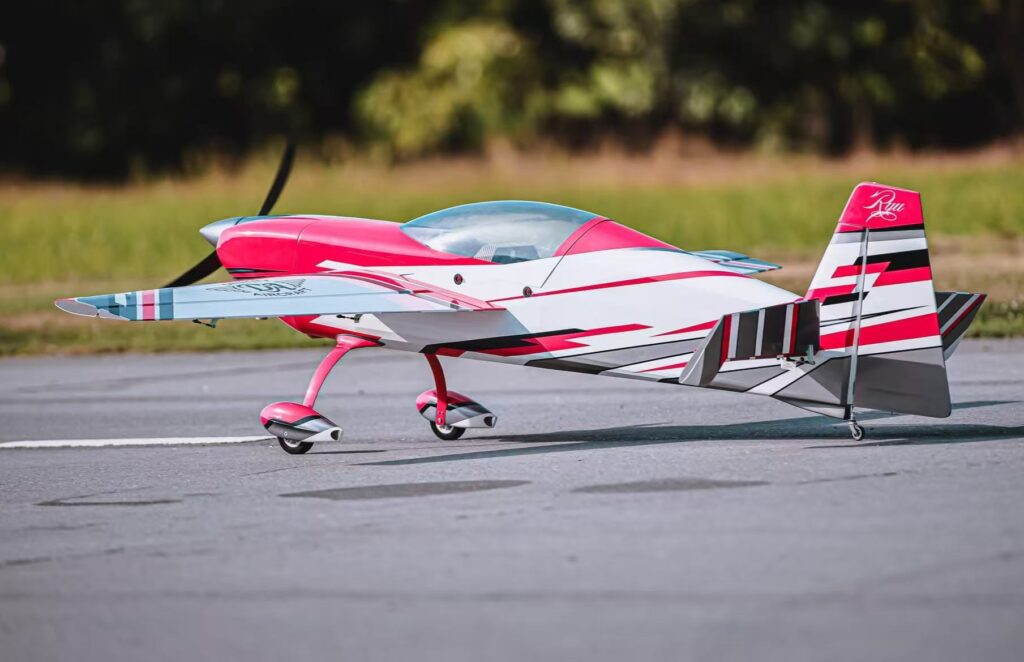

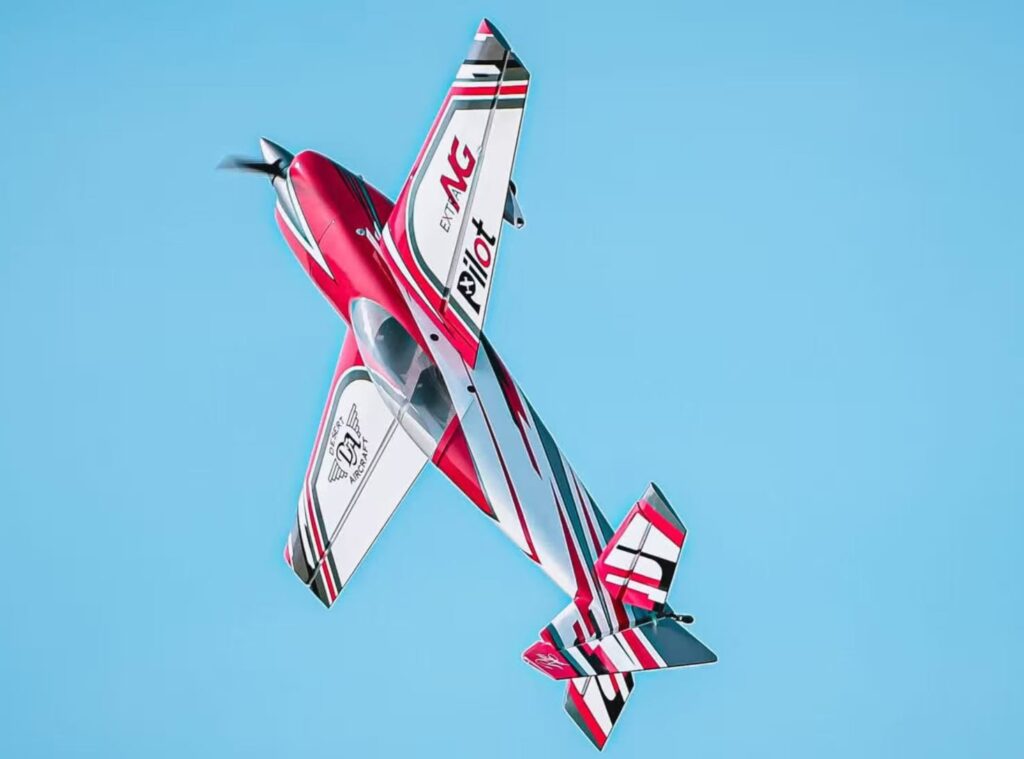

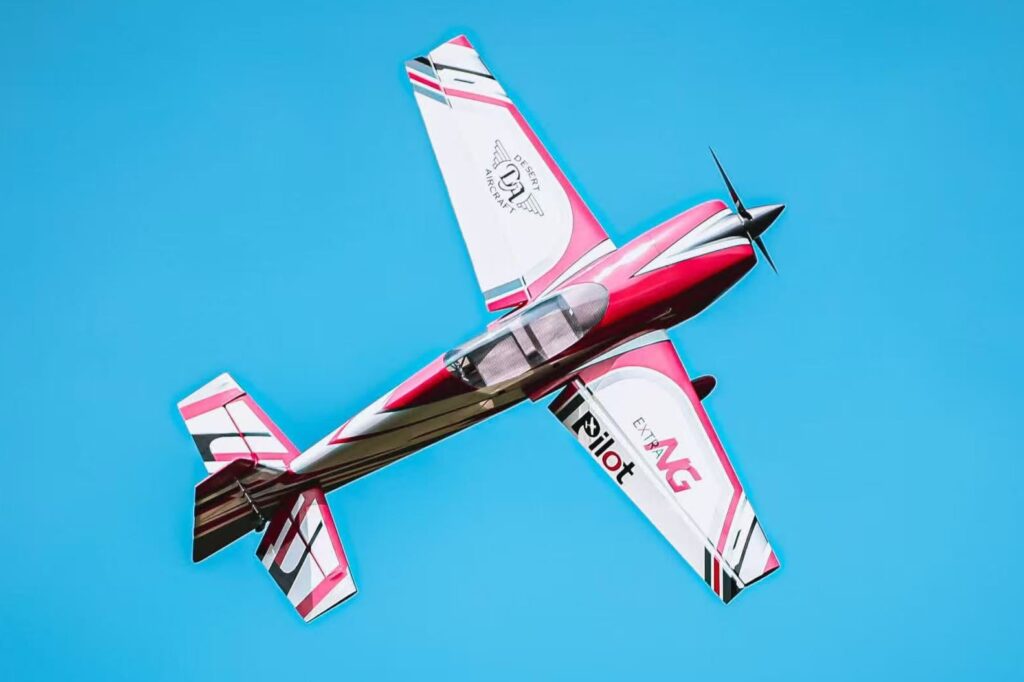

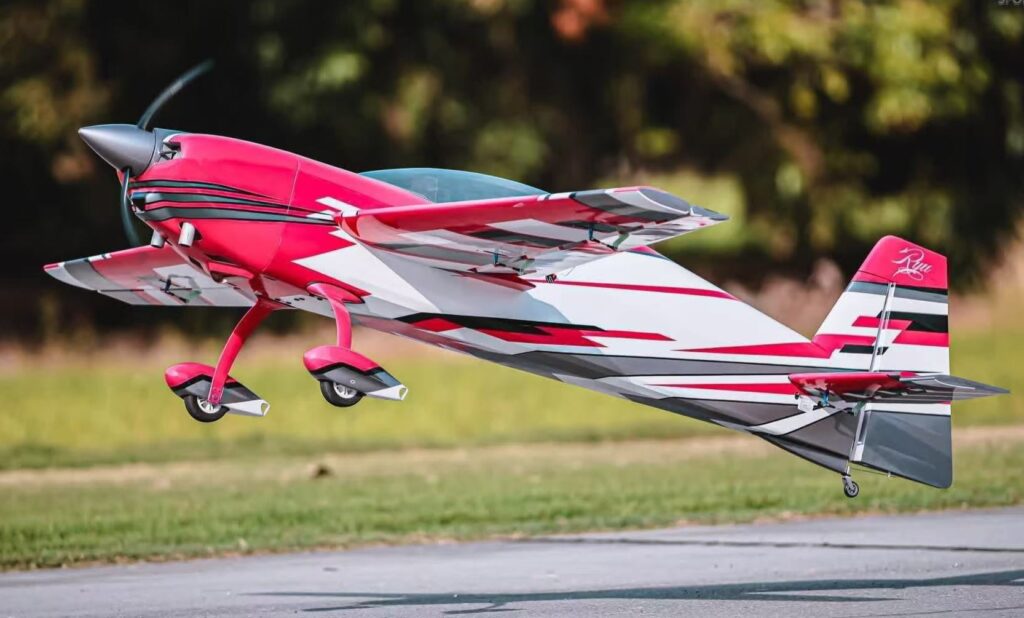

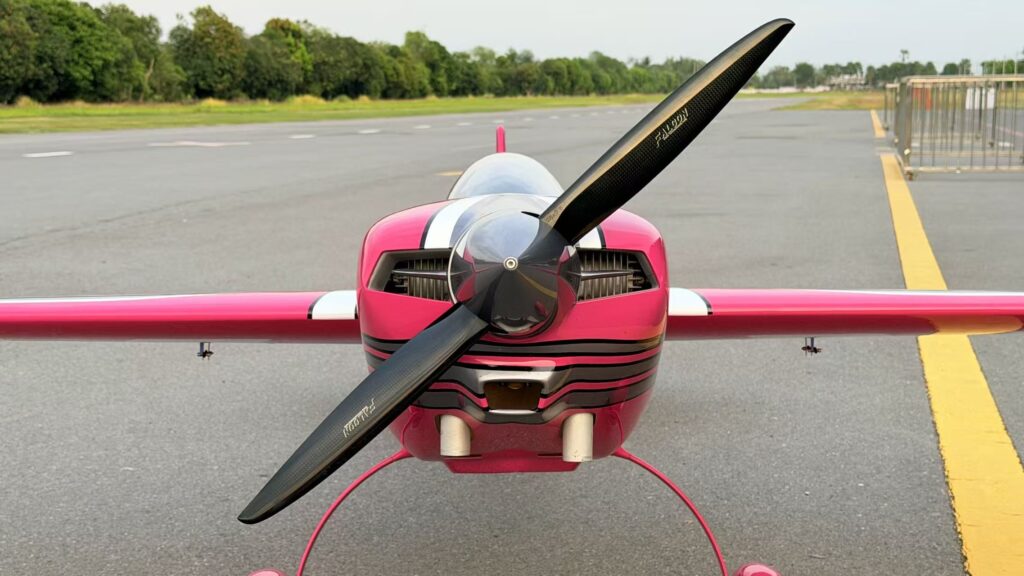

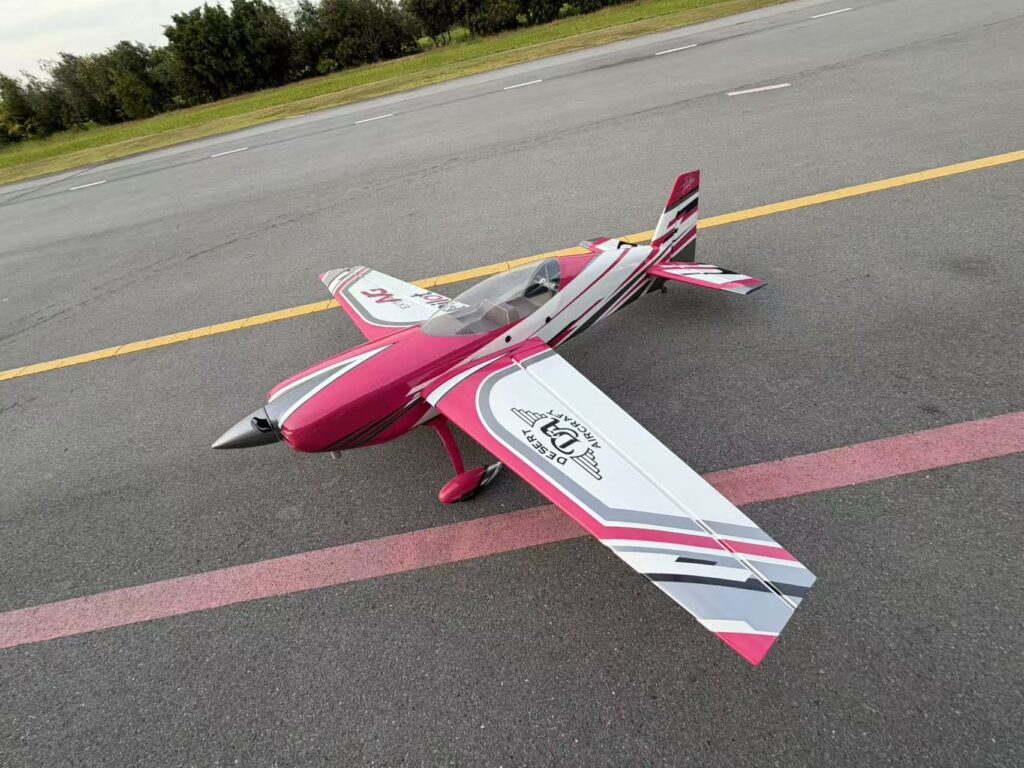

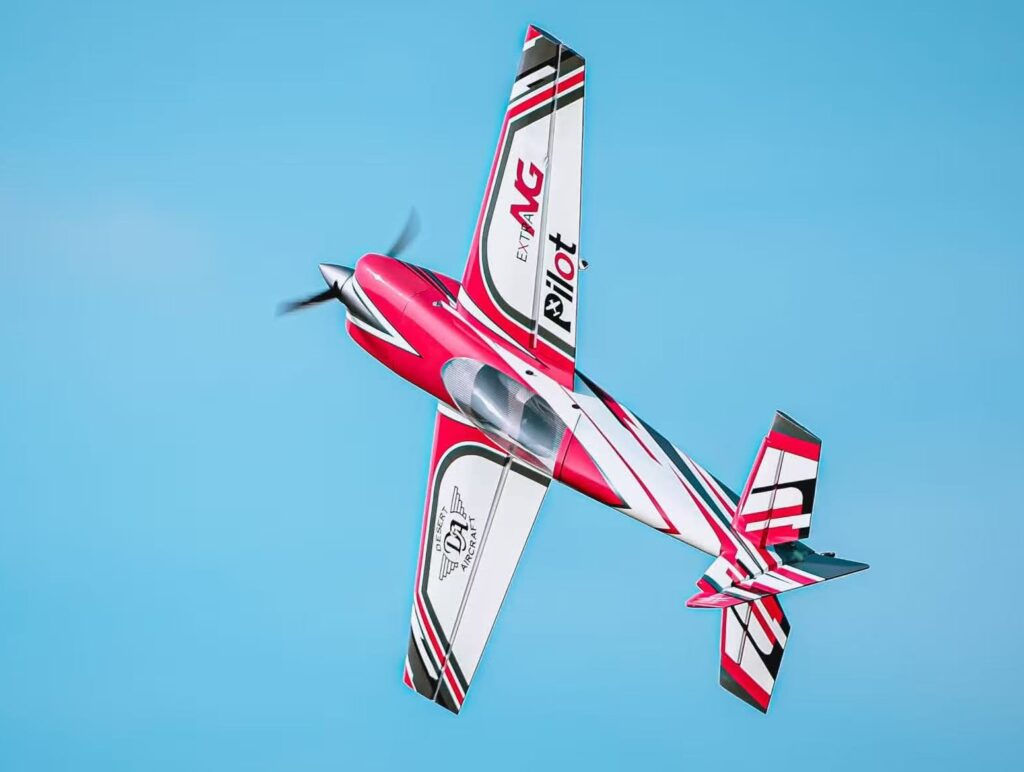

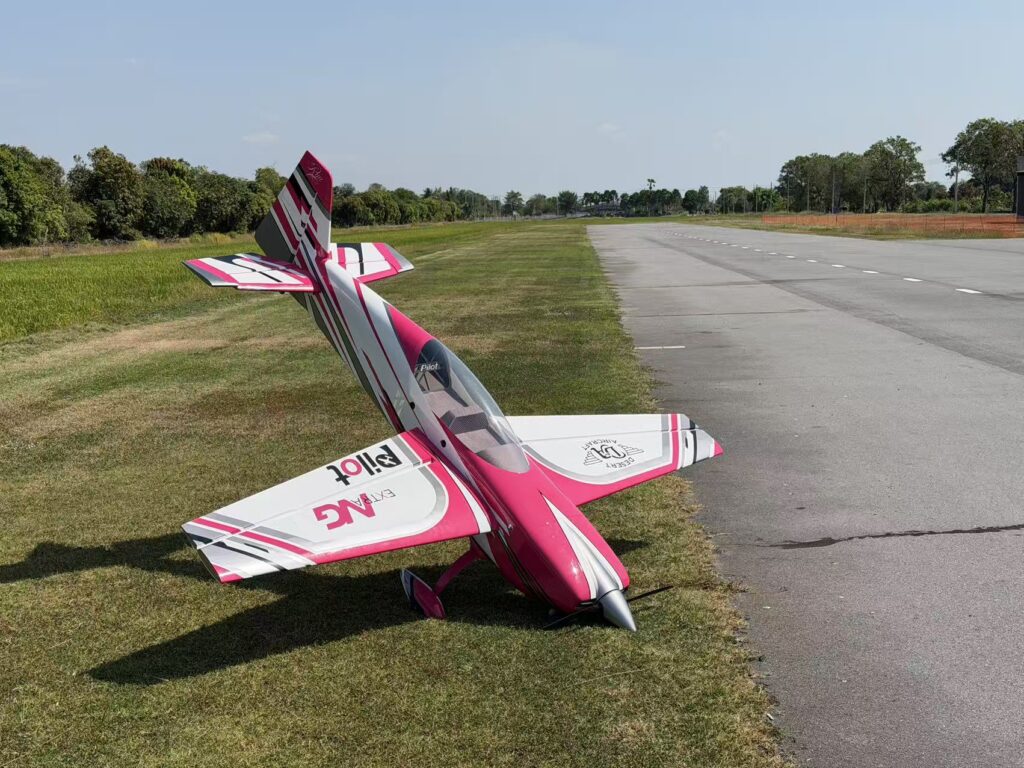

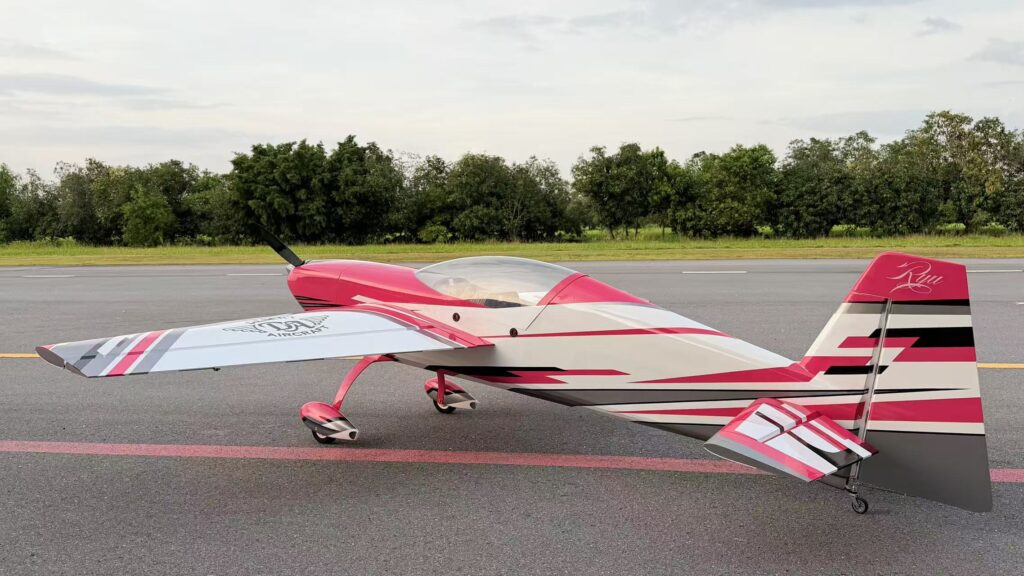

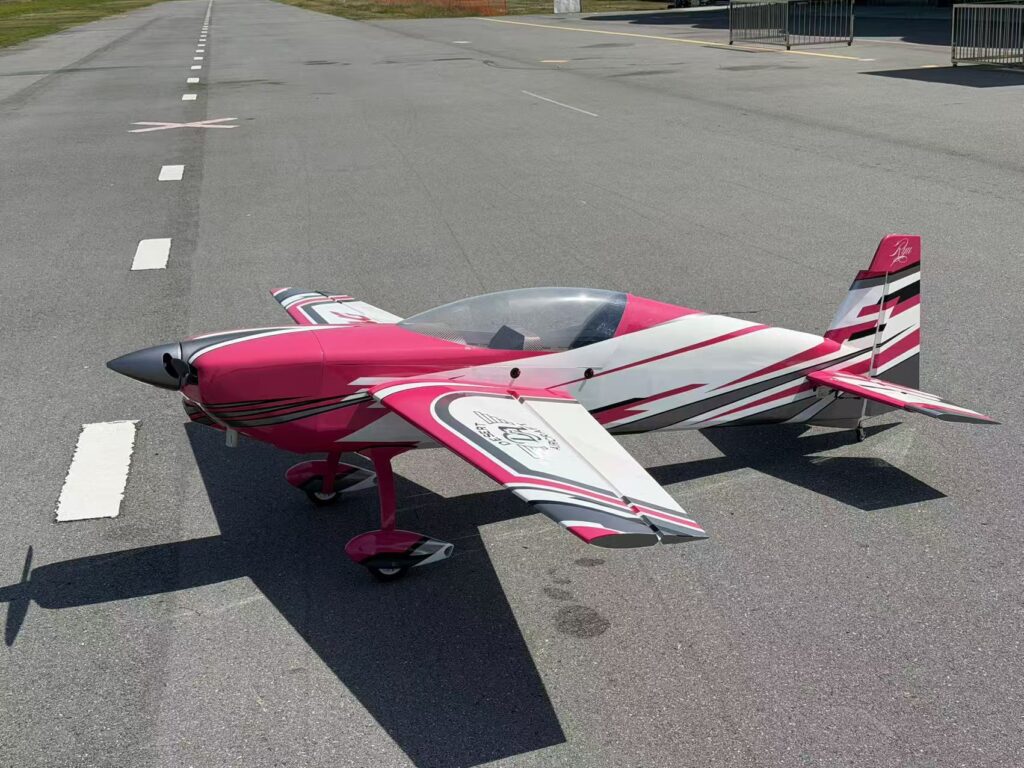

FULL GALLERY:

FEATURES:

  • NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
  • NEW! Patented quick assembly system for wings, stabilizer and SFG
  • NEW! Patented quick assembly system for canopy.
  • Film covering applied over a Genuine German Oracover (Ultracote) base
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed hinges (glued and pinned)
  • Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
  • Removable wings and stabs
  • Laser engraved motor mounting position
  • Easy canister installation due to open construction
  • Pull push system for Rudder servo

Included hardware:

  • Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
  • “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels, axels and wheel pants
  • Pre-prepared pushrods with ball links
  • Matching carbon spinner

Required hardware:

Motor: 80-120cc or equivalent electric

Servos: 7 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 or x2 on rudder using push-pull

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-Rc recommended hardware:

Colour schemes available:

Colour scheme Extra NG 01:
References: Oracover 21-010, 21-023, Metal blue / Ultracote HANU870, HANU866, Metal blue


Colour scheme Extra NG 02:
References: Oracover 21-010, 21-043, Carbon fiber effect / Ultracote HANU870, HANU903, Carbon fiber effect




Build information

COWL SIZE:

A: 342mm, B: 326mm, C: 319mm, D: 322mm

EXHAUST TUNNEL SIZE:

A: 974mm, B: 112mm, C: 974mm, D: 118mm, E: 172mm, F: 184mm

RUDDER HORNS AND PULL PULL LOCATION:

A: 49mm, B: 47mm, C: N/A, D: 86mm, E: 8,5mm

Extension wire lengths:

Throttle:
25cm

Each wing:
Inside aileron 30cm
Outside aileron 100cm
(to reach receiver direct)

Each elevator:
136cm

Each rudder servo:
136cm


CENTER OF GRAVITY:

225mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.


FULL Build manual:
