Viper Jet 2.0m (87″)

Viperjets are synonymous for a great flying jet, and this one really fulfils with expectations. Fast, slow, scale, acrobatic, fun, easy, it simply ticks all the boxes for your next jet!

Specifications:

Model:Viperjet 2.0
Wingspan:86.6″ (2,200mm)
Length:78.7″ (2,000mm)
Wing area:
Weight:23.7lbs (10.8kg)

Video:

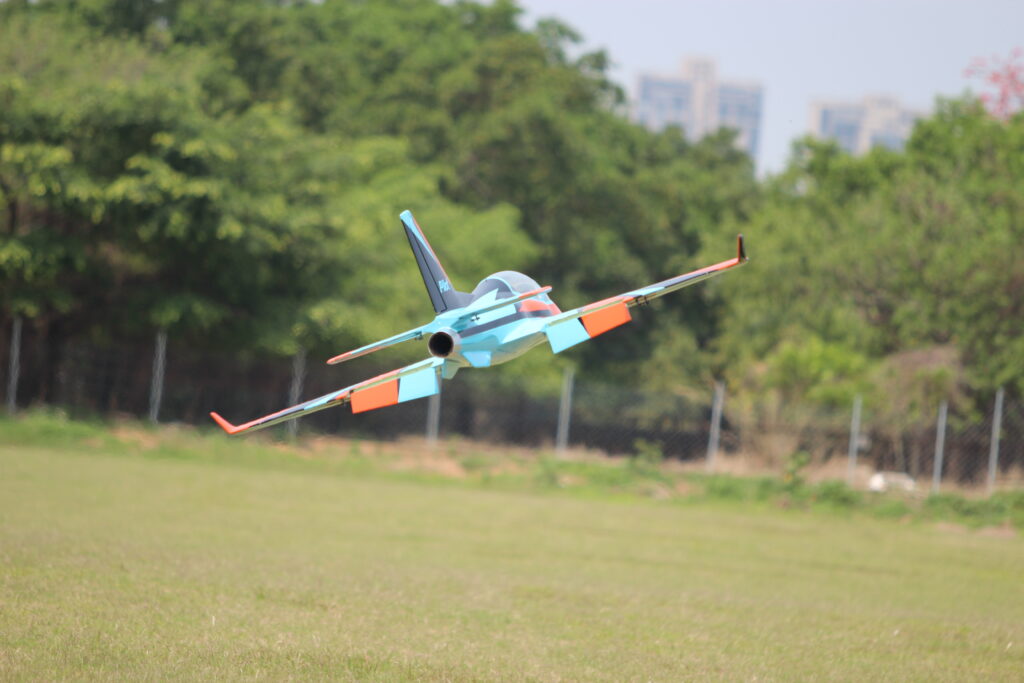

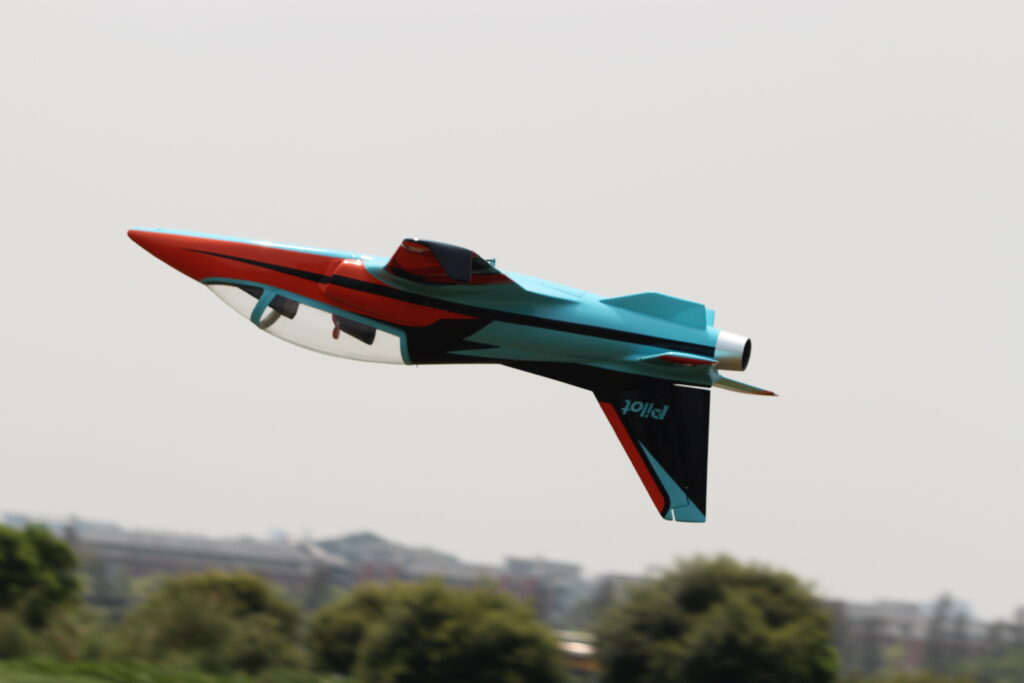

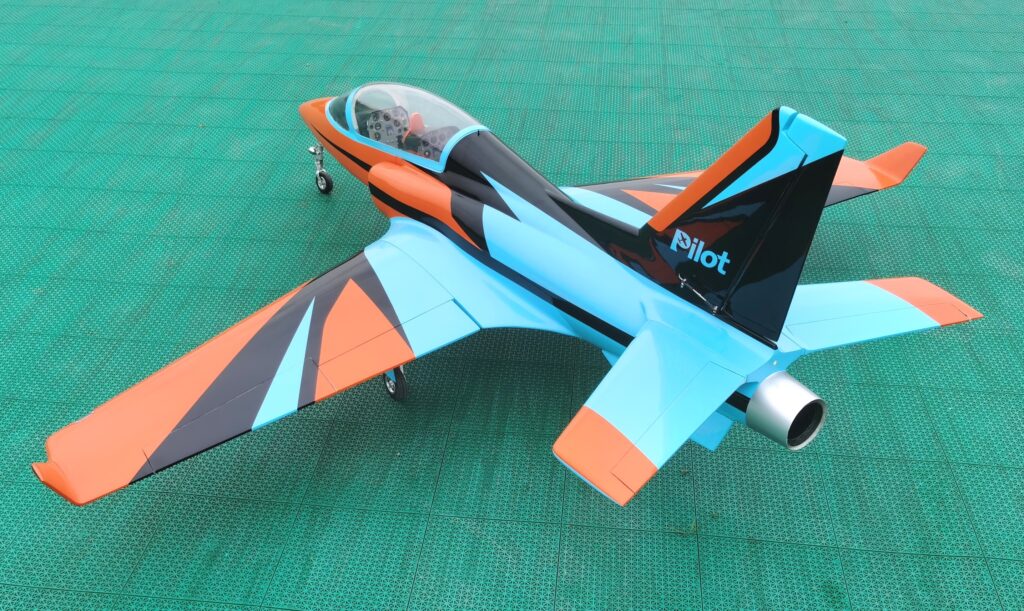

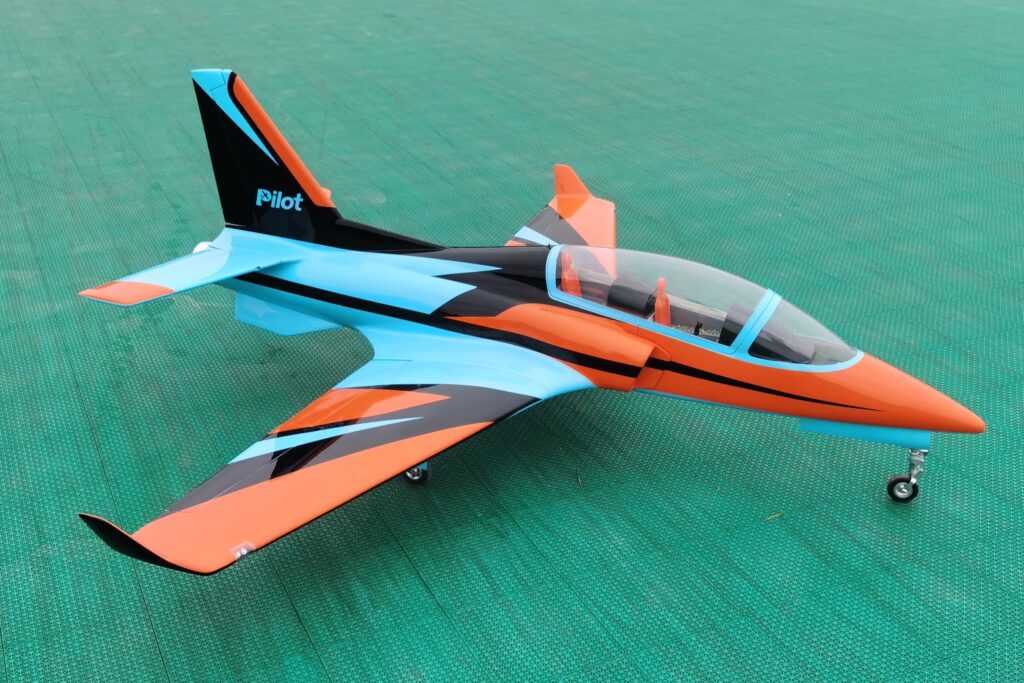

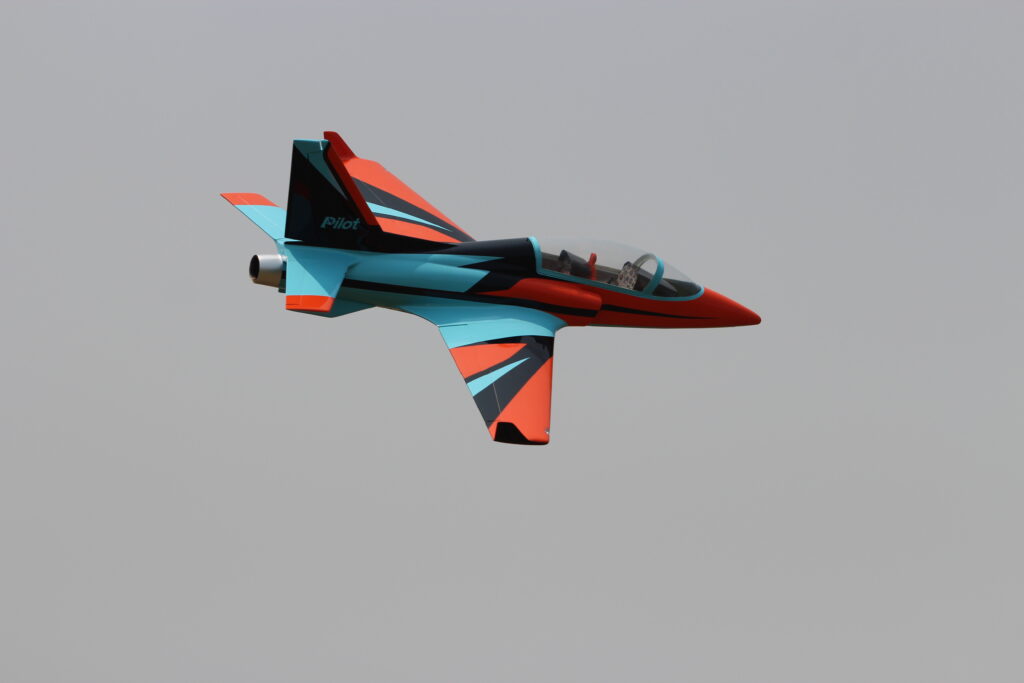

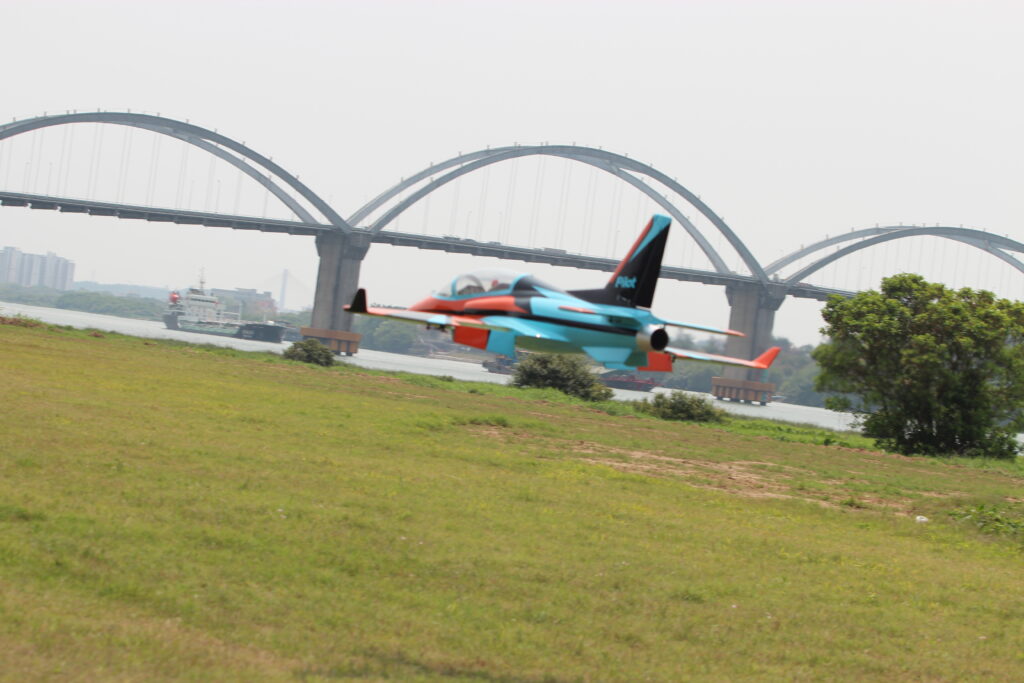

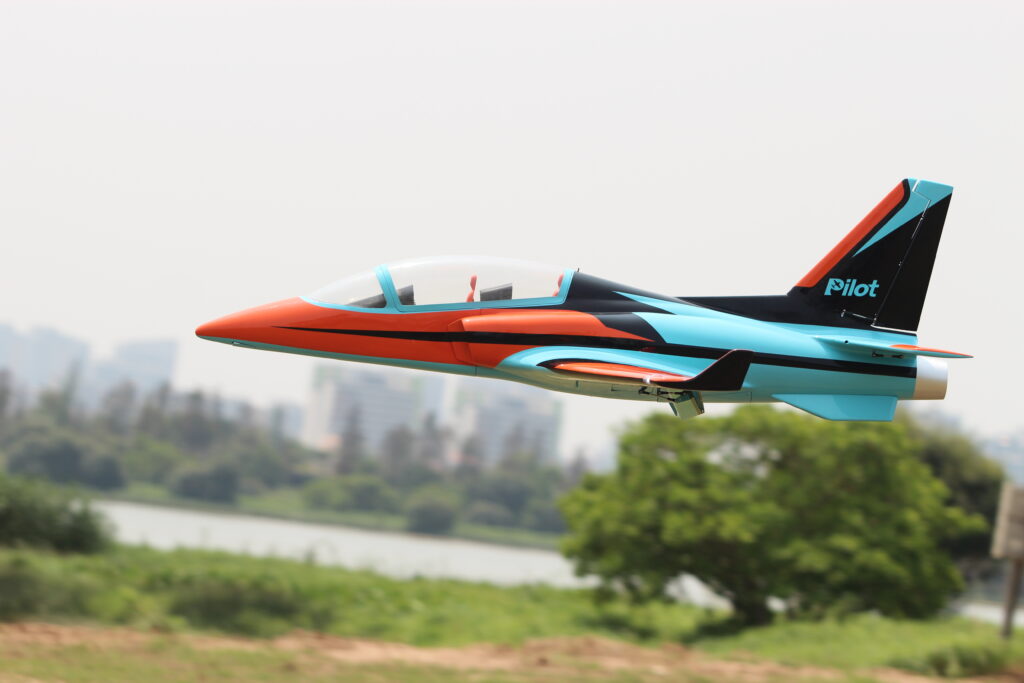

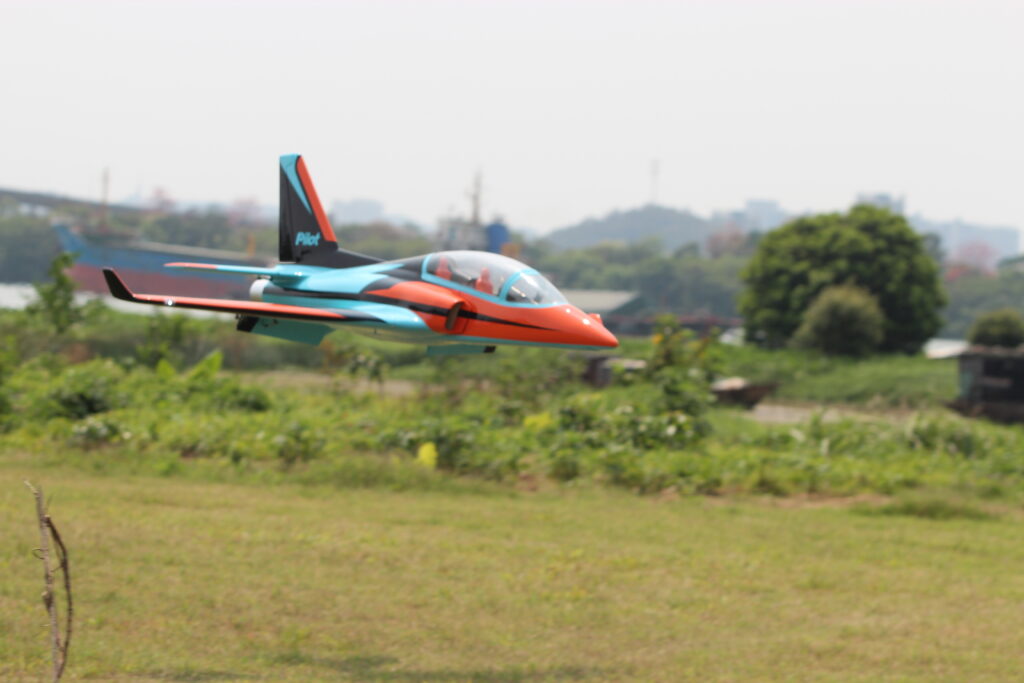

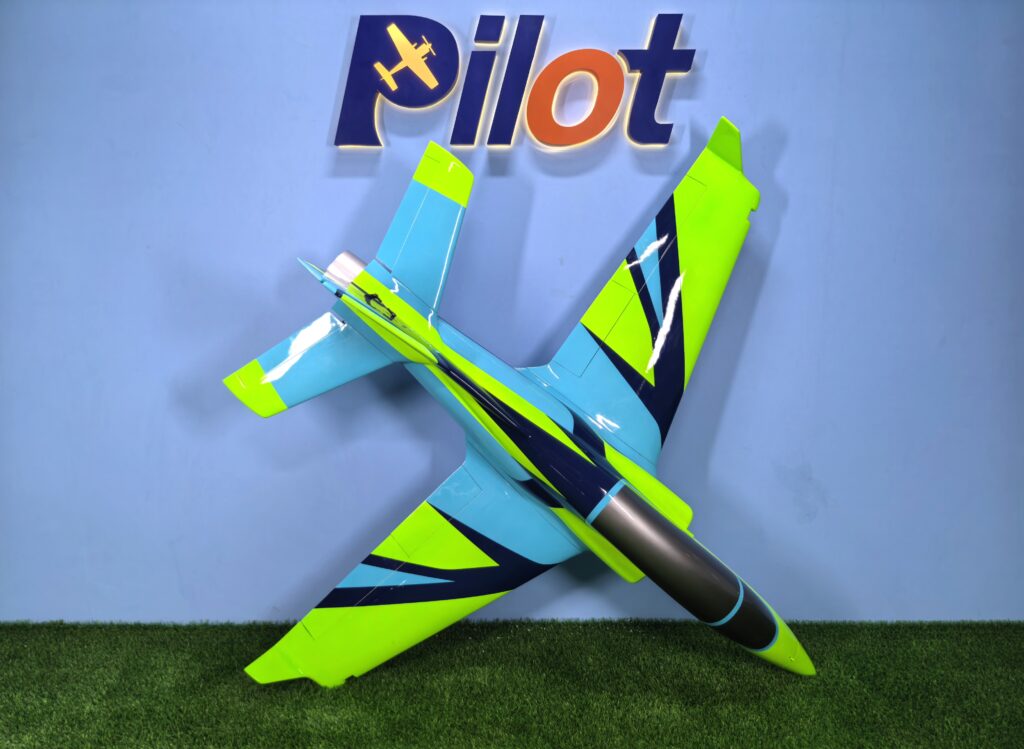

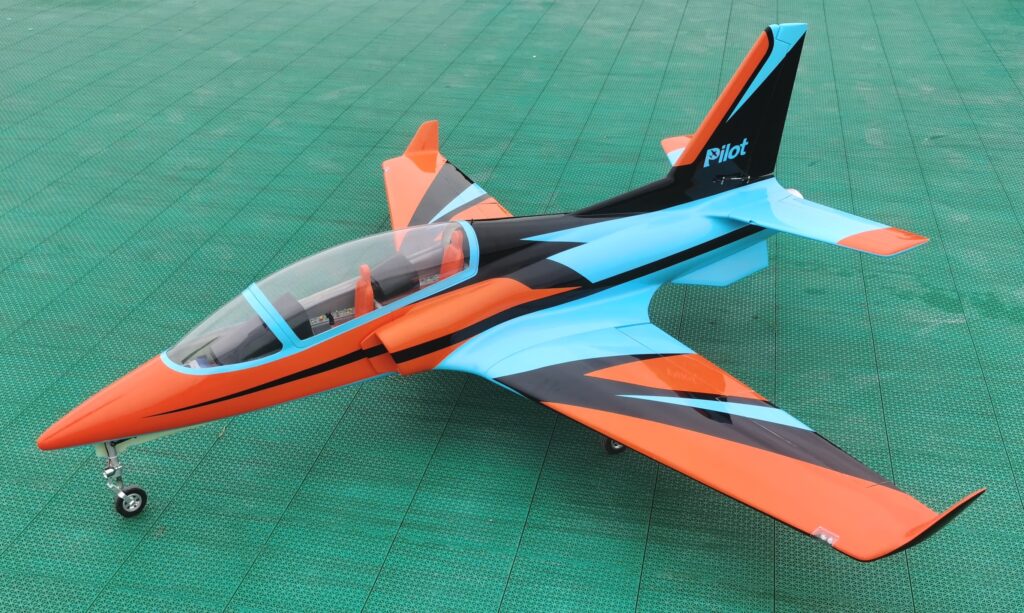

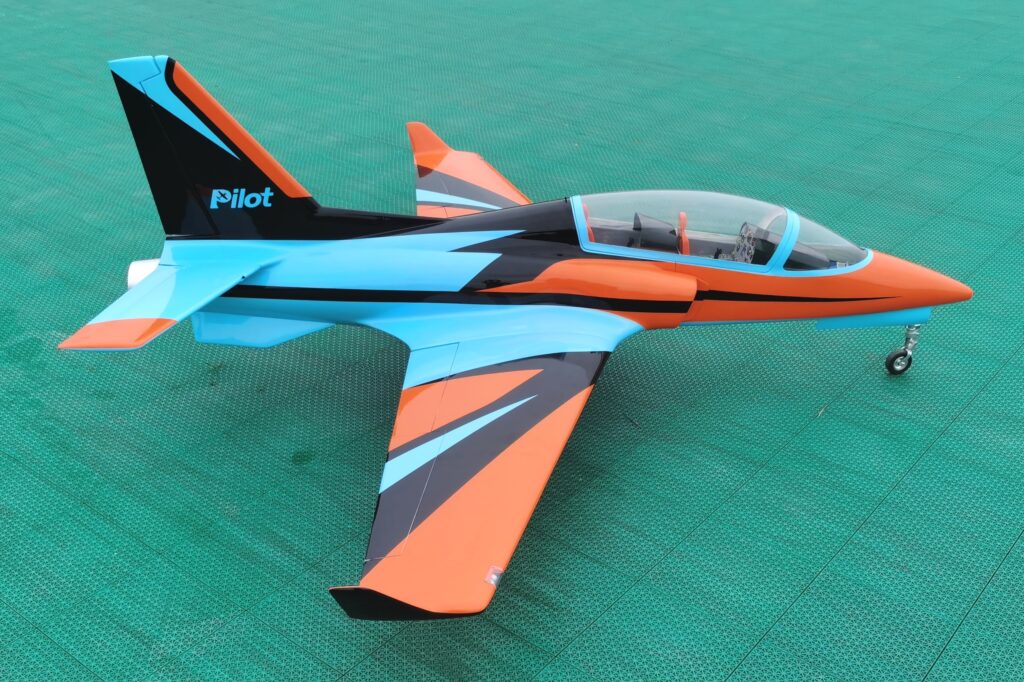

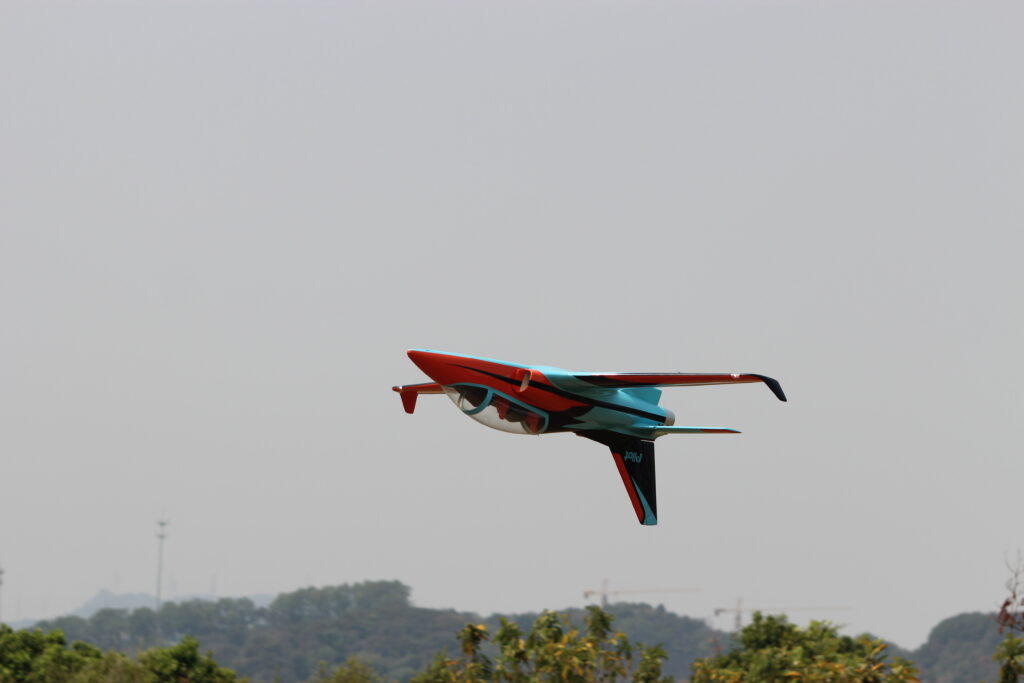

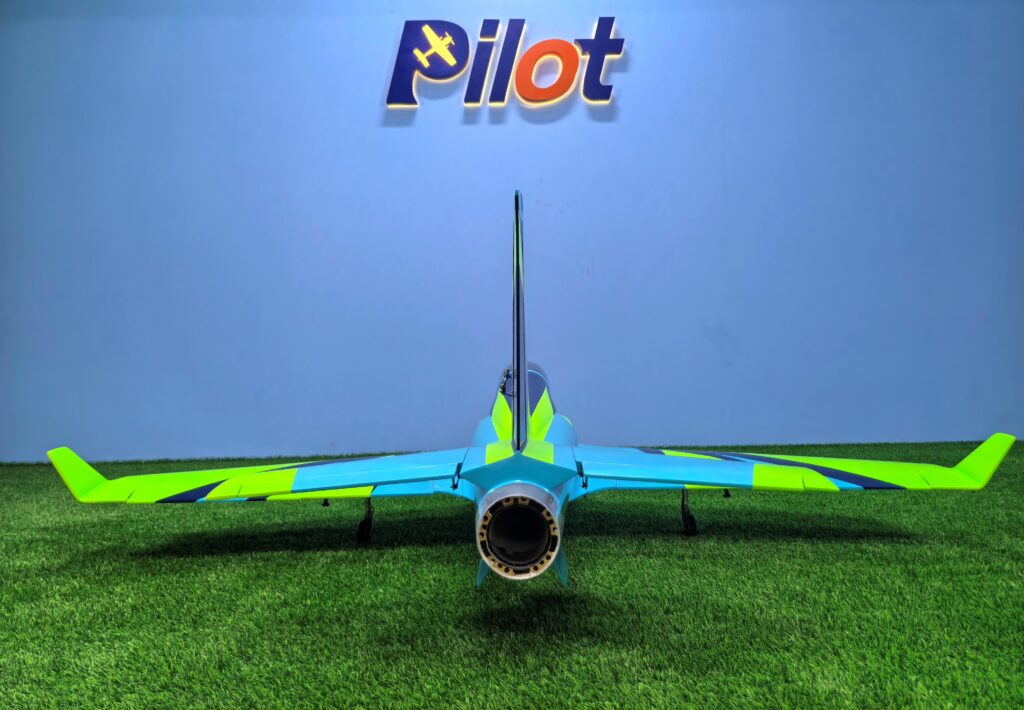

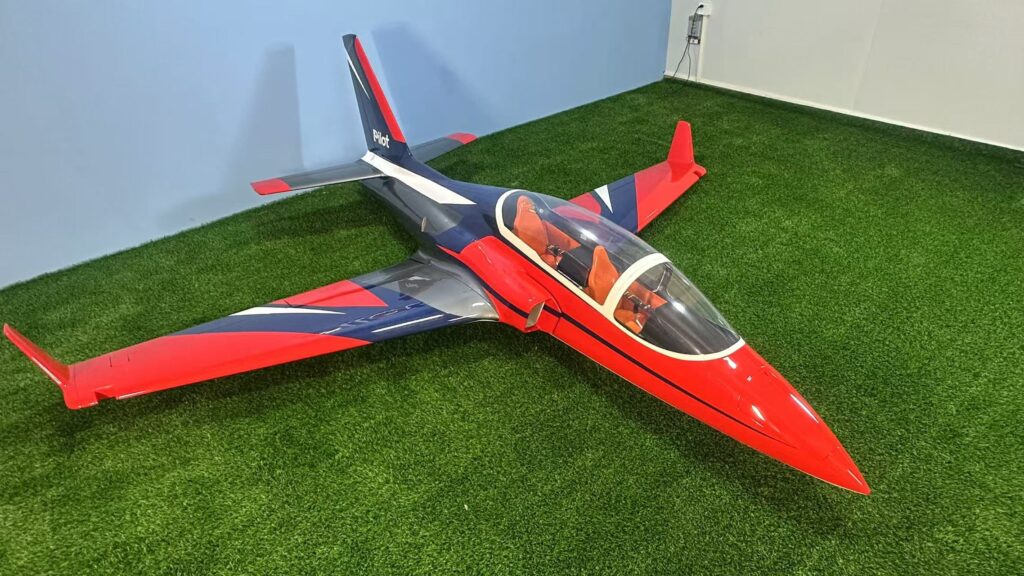

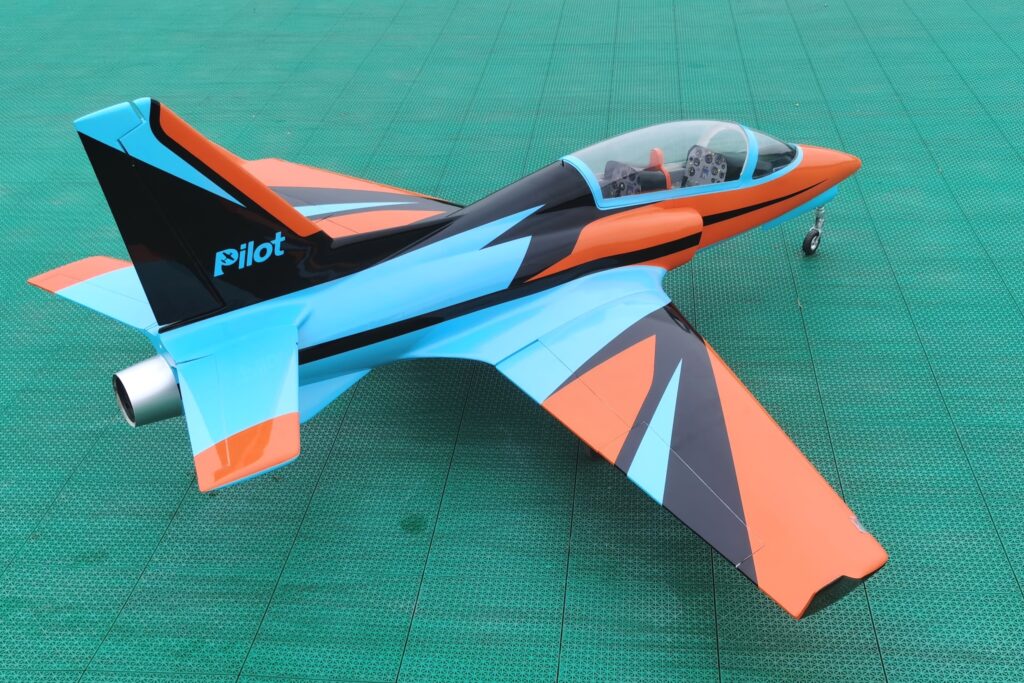

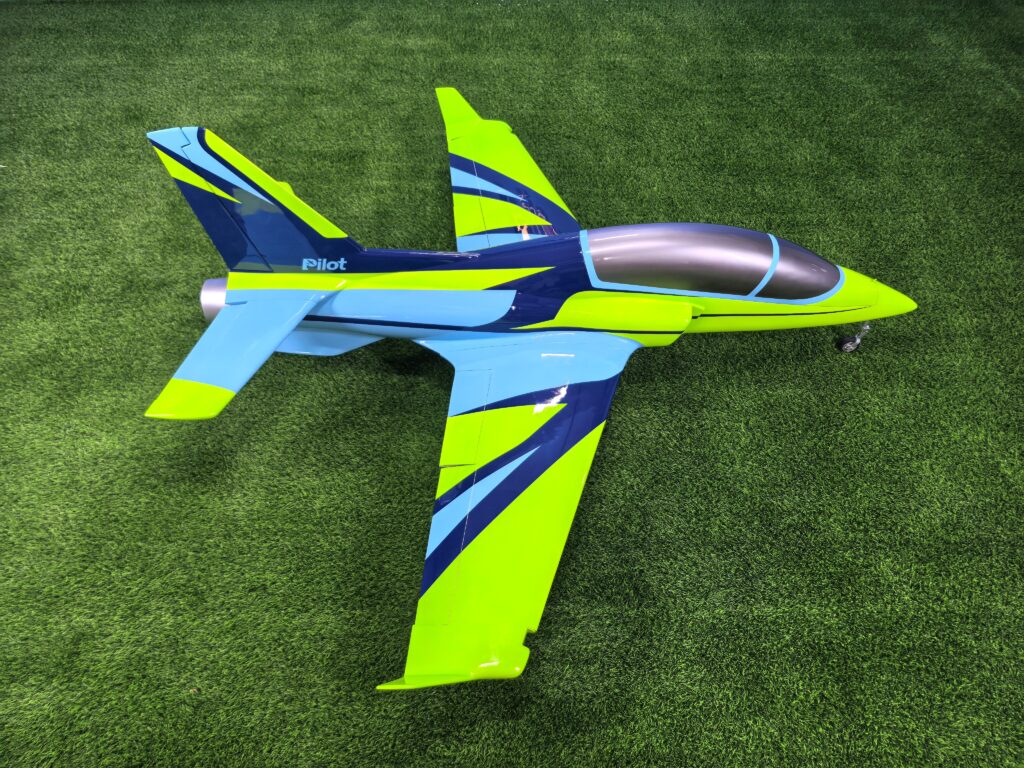

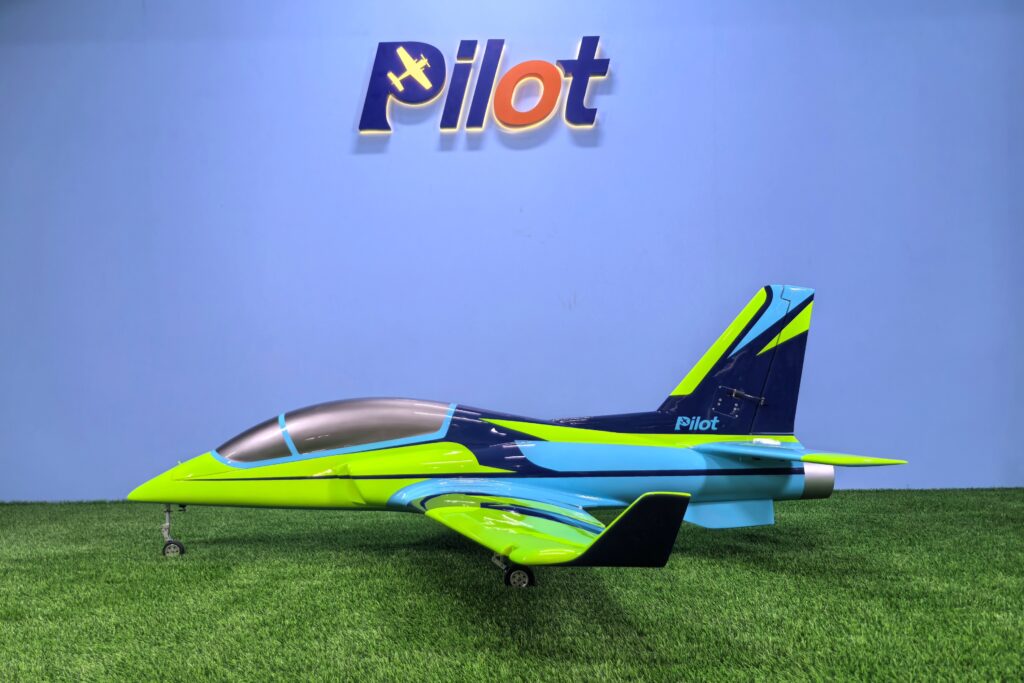

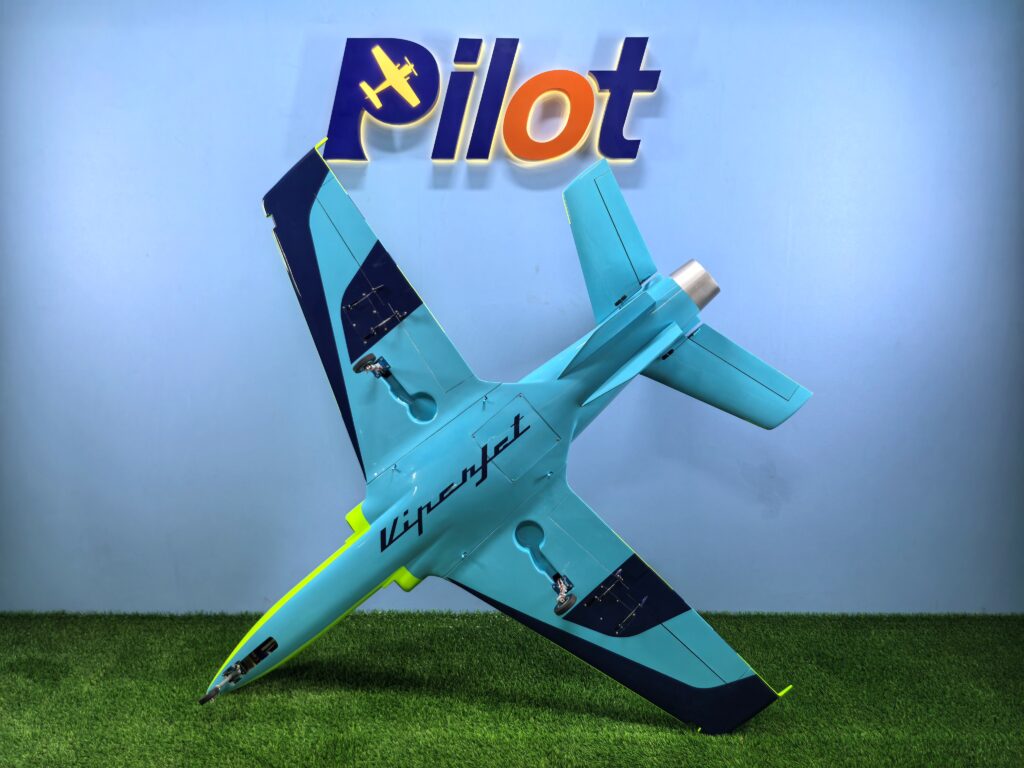

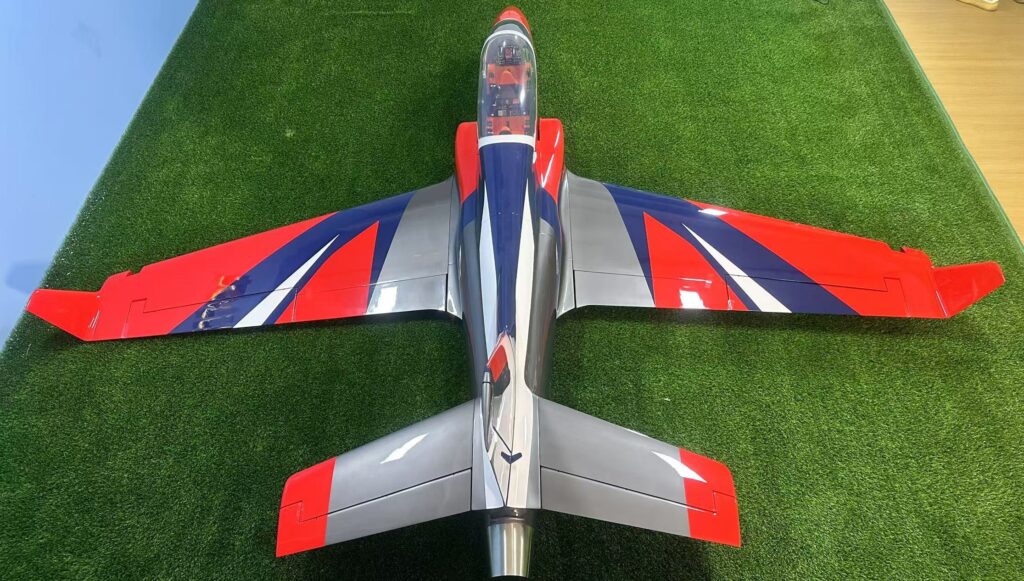

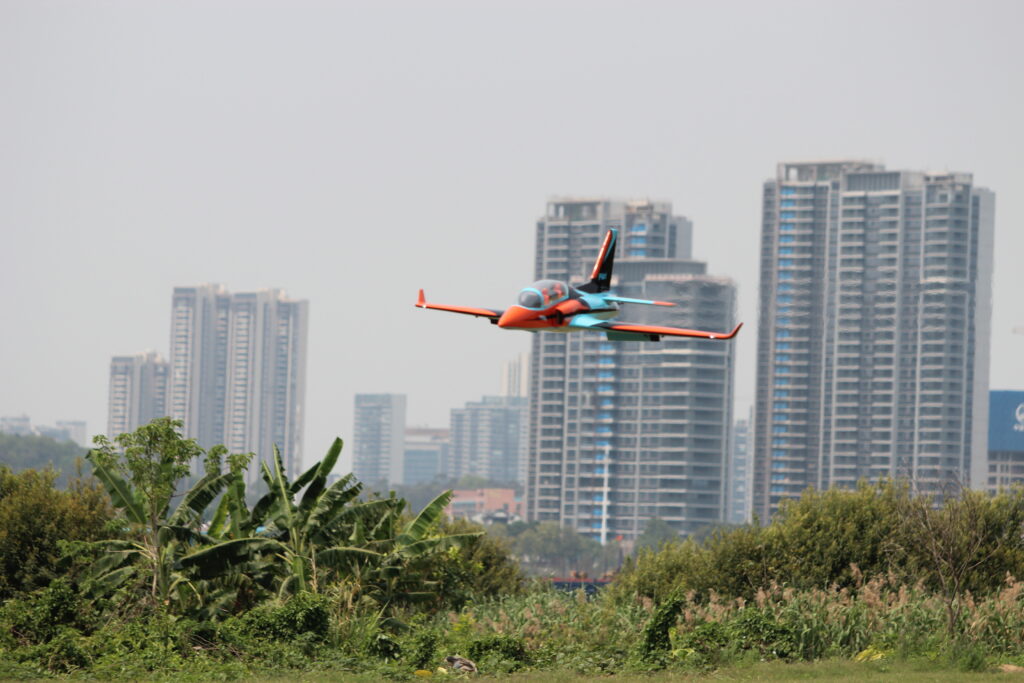

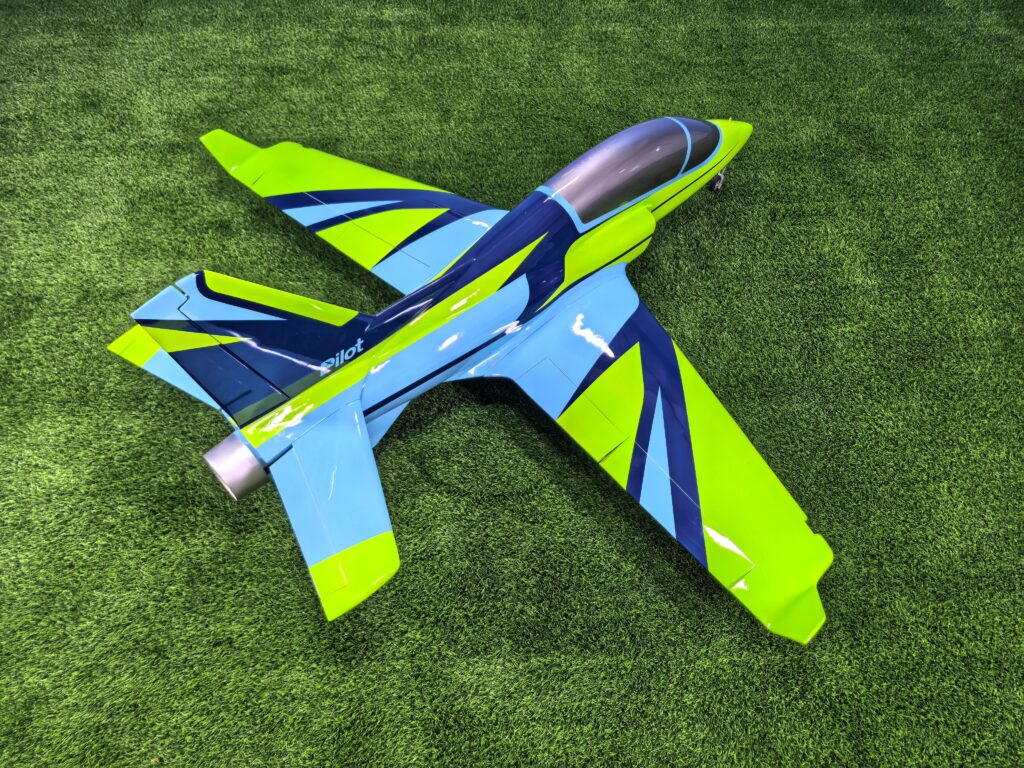

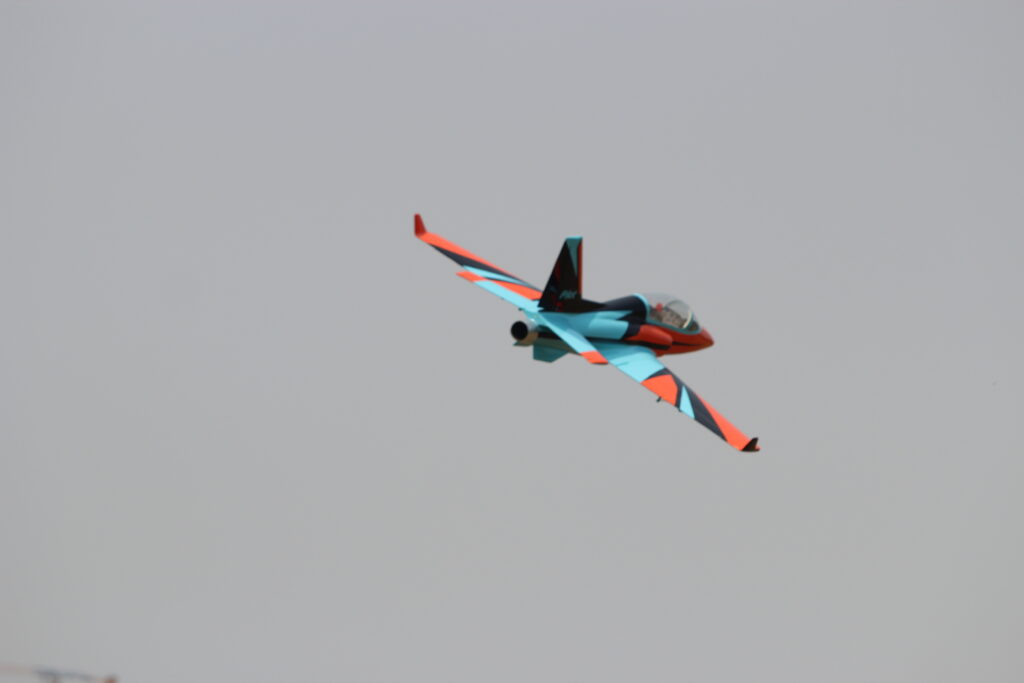

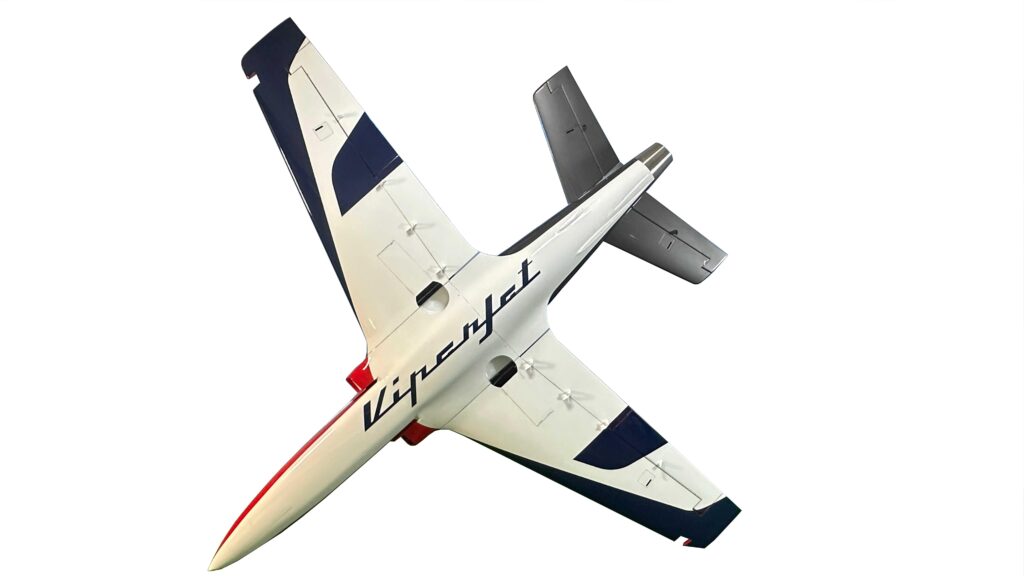

GALLERY:


FEATURES:

  • Full composite construction, lightweight and strong
  • Removable rudder, two piece wing and two piece stabiliser all for easy transport
  • Painted outside the mold so no seam lines
  • Pre-installed tubes for servo extension leads
  • Servo operated gear doors

Included hardware:

  • Complete air frame (including aluminium wing-tubes and fibreglass control horns)
  • Pilot-RC electric retracts and electric brakes
  • Scale cockpit (minus pilot)
  • Dual wall tail pipe (for 80-140N turbines)
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Air trap UAT
  • Pre-prepared pushrods with ball links

Also available: Turbine Ready version.  Includes all the above, plus x8 Pilot-RC servos, servo extension leads and navigation lights, all pre-installed and with free wing bags.  Just add your own turbine of choice.

Required hardware:

Turbine: 80-140N

Servos: 8 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.


Pilot-Rc recommended hardware:

This image has an empty alt attribute; its file name is Sero-adjust-1024x683.jpg

Build info:

Aileron: 20mm, Rudder: 25mm, Elevator: 20mm. Flap: 35mm for take off and 65mm for landing.

The CG is  160-177mm from the front leading edge on the root of the wing.


Colour schemes available:

Please note that schemes and logos may vary depending on country of delivery. Always check with your local dealer to confirm what logos are included in your area.

Any logos included at time of shipping are stickers, not paint.

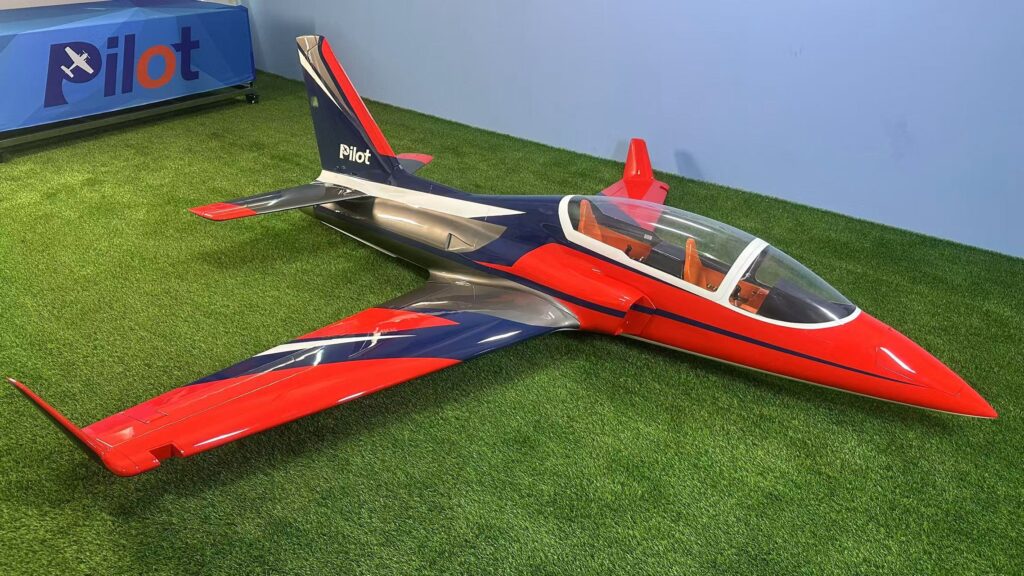

Colour scheme 01 – Red, Black, White:


Colour scheme 03 – Yellow, Black, Red:


Colour scheme 04 – Green, Black, White:


Colour scheme 06 – Metallic blue, White, Black:


Colour scheme 07 – Orange, Black, White:


Colour scheme 08 – Yellow, Black, White:


Colour scheme 09 – Red, Black, White:


Colour scheme 10 – Black, Sliver & Blue Racing:



Build information


CONTROL SUrFACES:

Aileron: 20mm up / 20mm down

Elevator: 20 mm up / 20mm down

Rudder: 25mm left / 25mm right

Flap 1 (take-off): 35mm

Flap 2 (landing): 65mm


CENTER OF GRAVITY:

160-177mm
Measured back from leading edge of the wing at the fuselage.


FULL Build manual:
