This new jet features a very convenient size and an affordable price, while delivering no-compromise performance.
The Matrix 2.4 project began in early 2025 with a clear goal: to create a jet that offers top-level 3D performance in a perfectly balanced size. After building and testing several prototypes throughout the year, we finally arrived at the final design that truly delivers the performance we were aiming for.

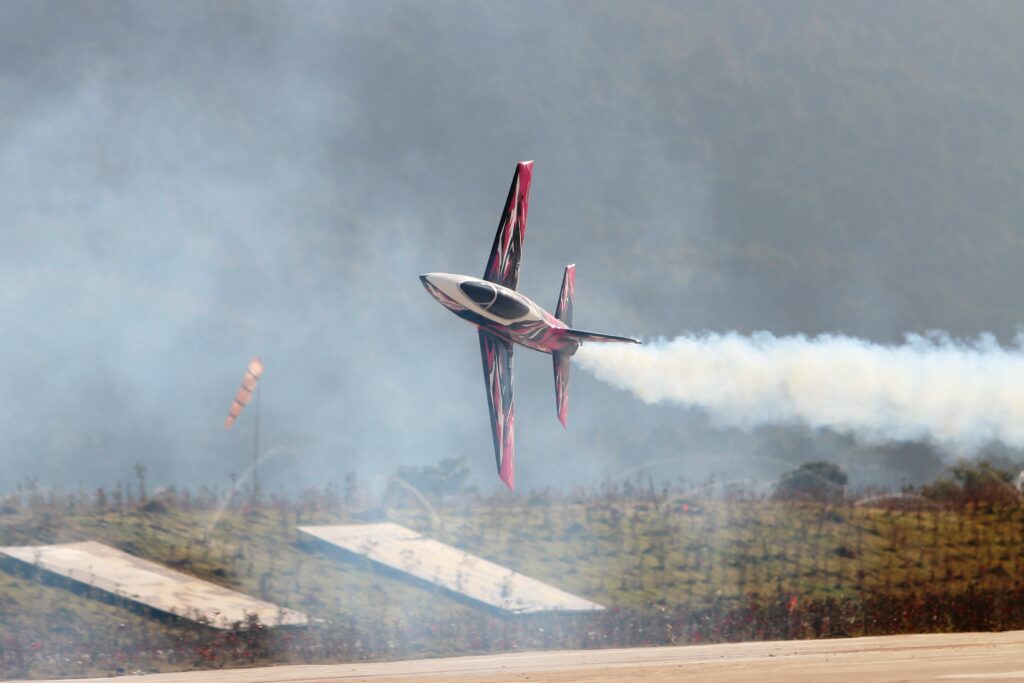

The Matrix 2.4 can easily perform aggressive 3D maneuvers with a JetCat P220 turbine, providing more than enough power—even when using a smoke system.
Since the Matrix 2.4 is the newest model in the series, we also wanted to introduce a brand new color scheme. Tony Tan and Ryu explored many different design ideas before collaborating with SIBA Design to create this bold and aggressive look that makes the Matrix even more modern and eye-catching in the sky.
Specifications:
| Model: | Matrix Sport Jet |
| Wingspan: | 88″ (2,238mm) |
| Length: | 96″ (2,451mm) |
| Weight: | 28.8lbs(13.1kg) with P220 turbine with vector |
Video:

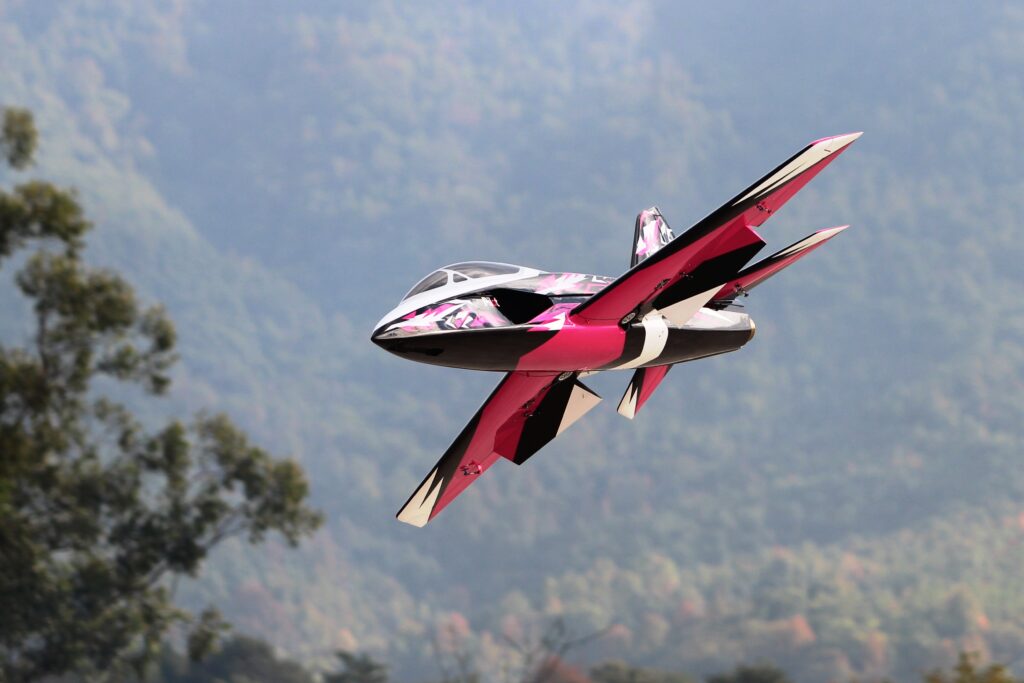

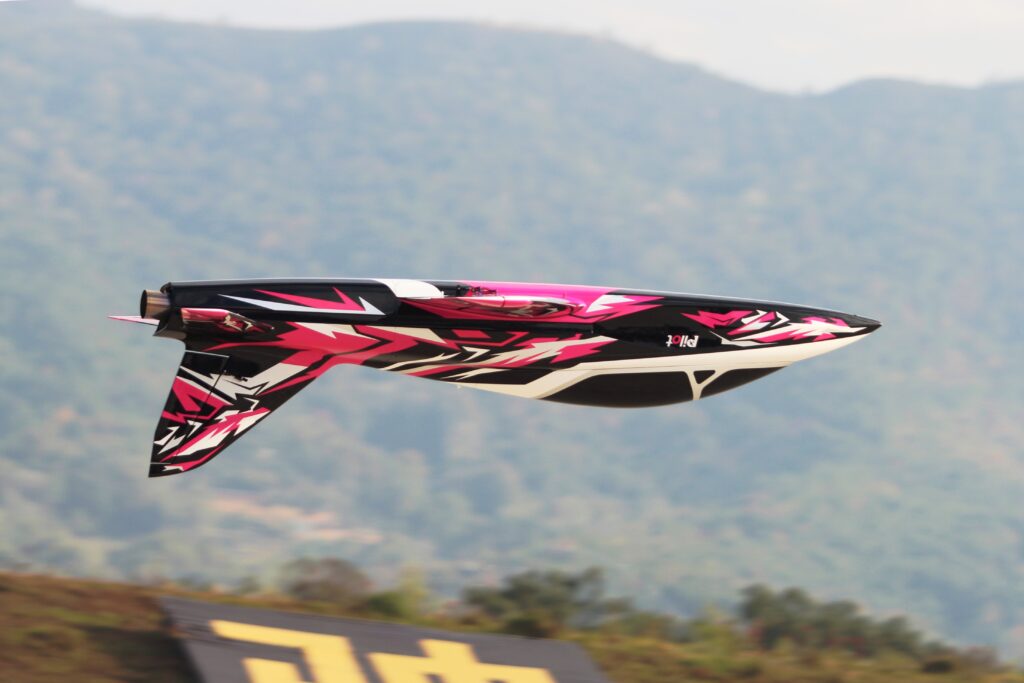

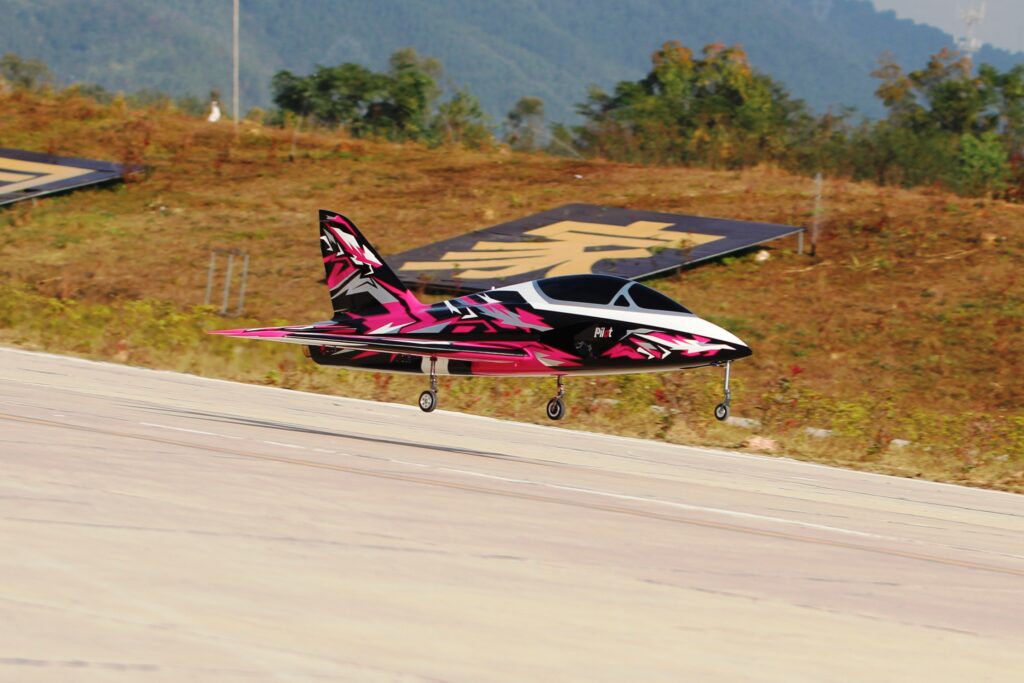

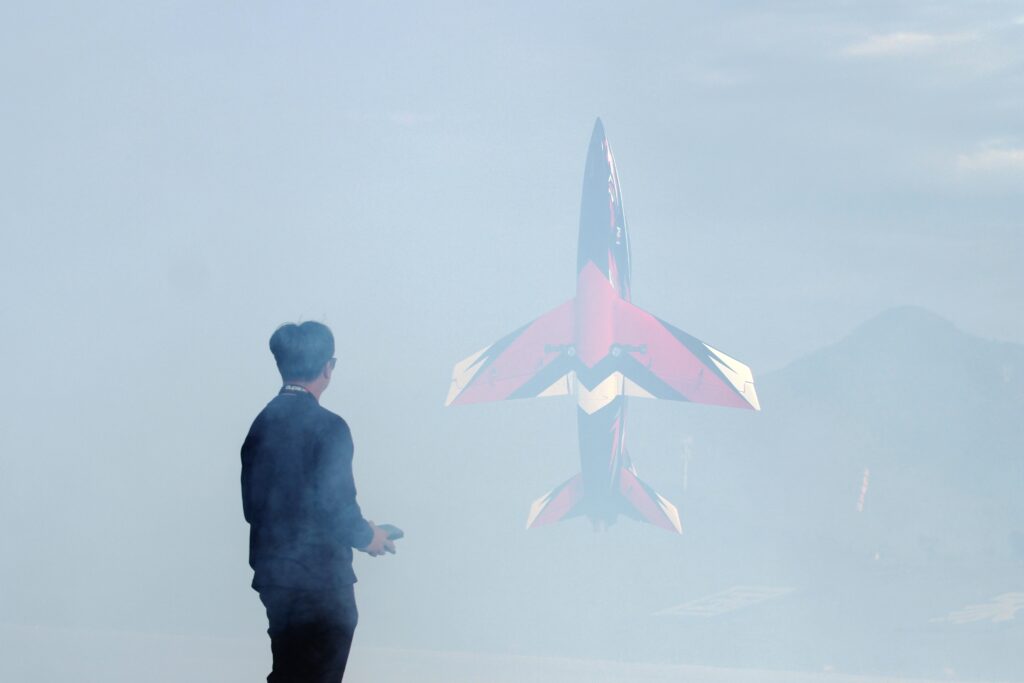

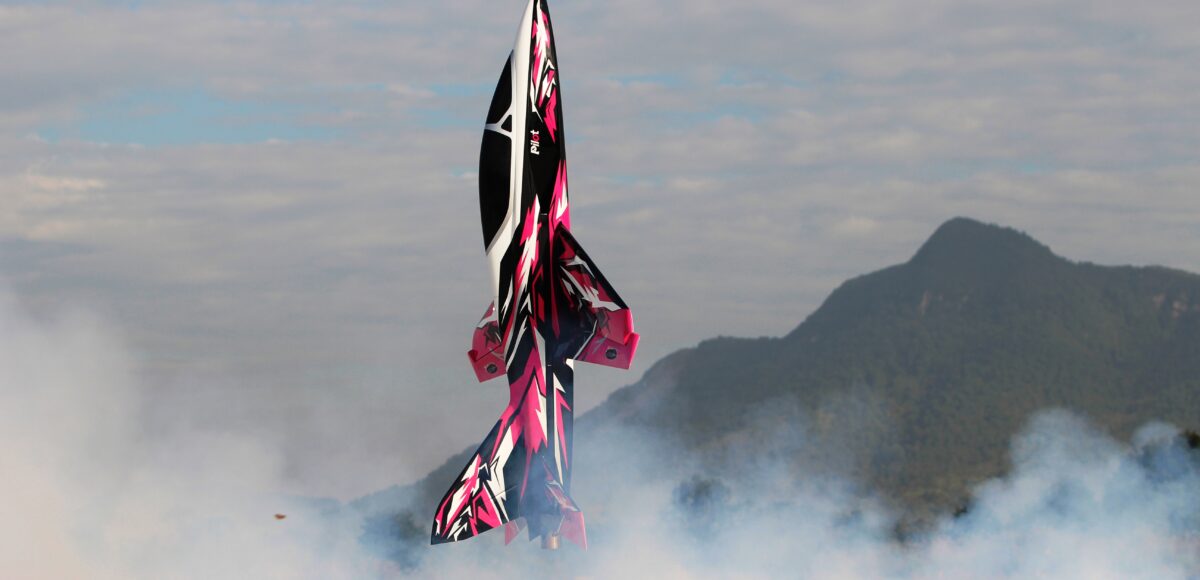

GALLERY:
FEATURES:
- Extremely lightweight full composite construction especially designed for outstanding sport flight with 3D performance
- Painted outside the mold so no seam lines
- Ultra light weight landing gear special build for Matrix 2.4m

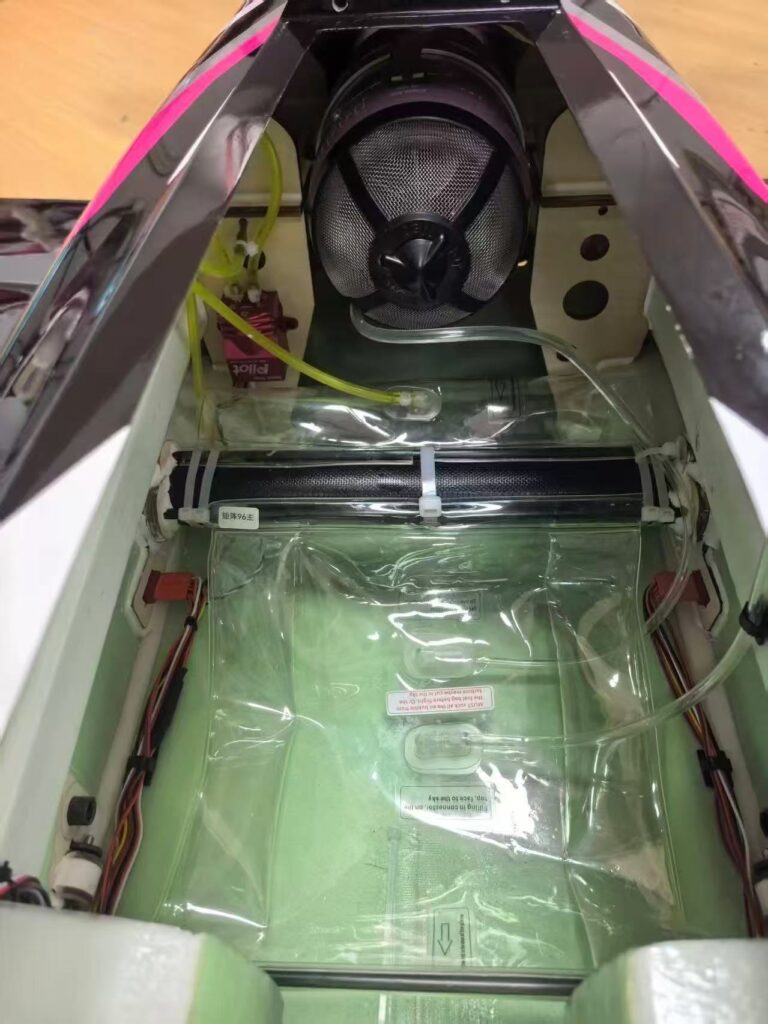

- Specially designed easy access to turbine for speedy installation
- Field setup can be done in seconds, thanks to the quick releases on the wings without any tools.
- Quick release on stabilizer without any tools
- flap can use as aileron to make very axial rolling performance with counter balance on tip aileron allow to use only 1 servo per aileron
- Removable wing and stabilizer for easy transport
- Removable two piece of fuselage for easy transport, only four bolt to lock two piece fuselage. tail pipe is fixed on the back section of fuselage.

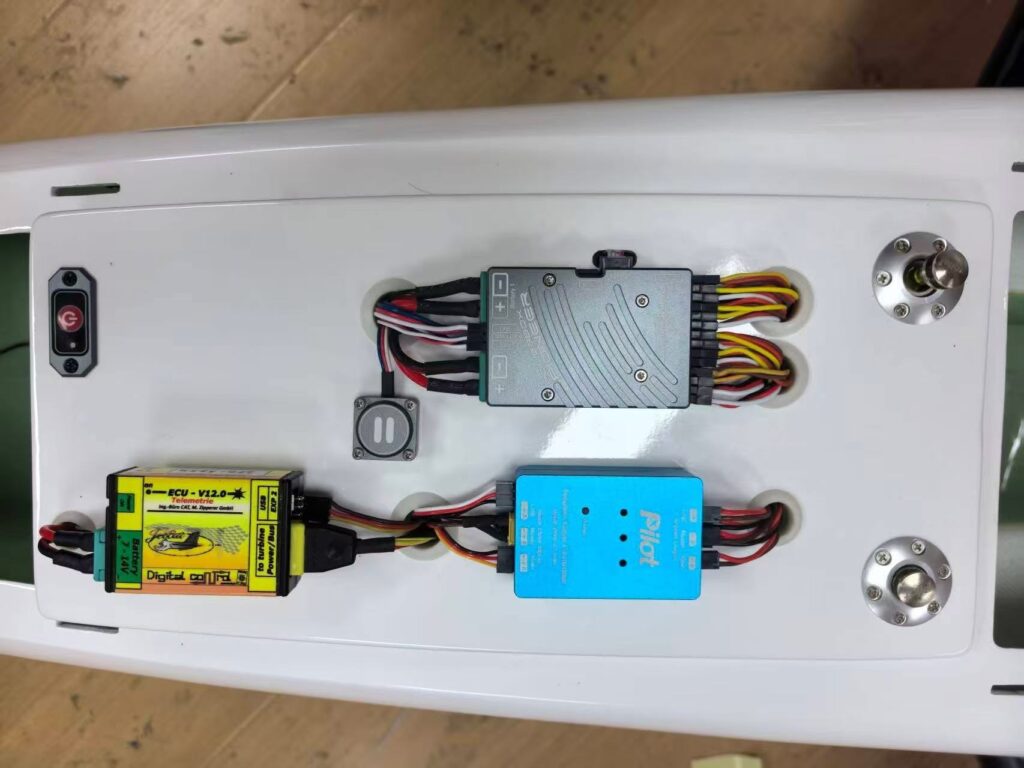

- The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidened.
- pre-install tube for the stab/rudder extension wire, easy to install.
- Option with vector tail pipe for 3D flight.
Included hardware:
- 4in1 connector/leads for wing and fuselage
- 3in1 connector/leads for two piece of fuselage
- 2in1 connector/leads for two piece of fuselage(option for vector version)
- Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
- normal tail pipe (optional Vector thrust pipe)
- 4200ml fuel bag
- 1500ml smoke oil bag(option)
- Pre-prepared pushrods with ball links
- Servo connector brackets
*Also available: TR(turbine ready) version 2.4m Matrix jet with fuel bag, normal tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. with wing bag.
*Also available:TR(turbine ready) PRO version 2.4m Matrix jet with fuel bag ,fuel smoke bag, smoke pump, vector tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. with wing bag and fuselage bag
Required hardware:
Turbine size:
- 140-190N for normal sport flying
- 210-260N for 3D vector flight – Avoid high speed high G flying
Servos: Standard size x5
x2 for flaps (minimum 48kg)
x1 for rudder (minimum 37kg)
x2 for ailerons (minimum 37kg)
Servo : MIddle size x5
x2 for elevators (minimum 21kg)
x1 for vector elevator (minimum 21kg), this is option
x1 for vector rudder (minimum 21kg), this is option
x1 for steering (minimum 16kg)
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
Control Throw in all surface
for Sport flight
Aileron: 35mm, Rudder: 50mm, Elevator: 33mm.
Flap: 66mm for take off and 115mm for landing.
for 3D flight
Aileron: following the flap to aileron , Flap to Aileron is 74mm up and 70mm down Rudder: 59mm, Elevator: 46mm.
Center Of Gravity
Measured back from leading edge of the wing 295mm ( without fuel and gear down)
Pilot-Rc recommended hardware:
- Servos: Pilot-Rc PW48AH (48Kg)
- Servos: Pilot-Rc PW21AH (21kg)
- Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-RC servos)
5 colour schemes available!.
Colour scheme 01
Colour scheme 02:
Colour scheme 03:
Colour scheme 04:
Colour scheme 05:
Colour scheme 06:
Colour scheme 07:
Colour scheme 08:
Colour scheme 09:
Colour scheme 10:
Colour scheme 11:
Video showing how to use fuel bag
Build Manual : 2.4 manual is coming soon now you can see reference from 2.8
More photos available on the Pilot-RC facebook: www.facebook.com/pilotrcmodel
