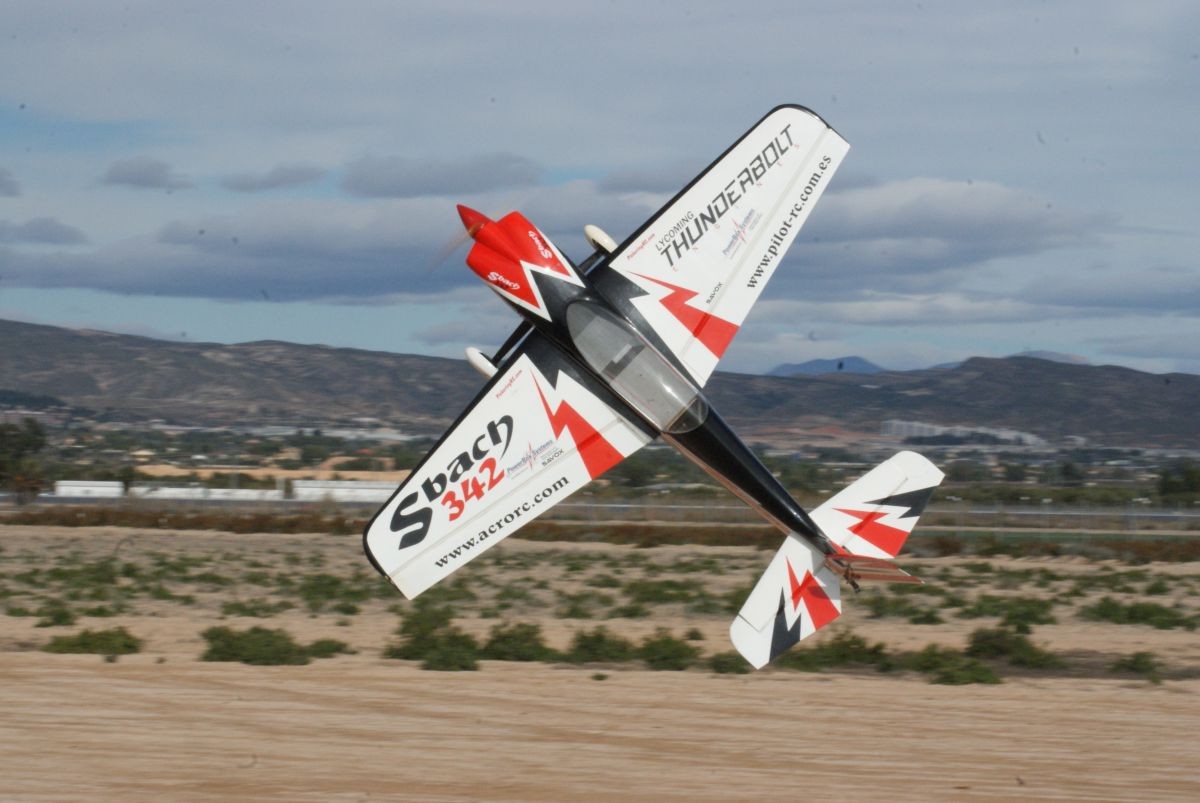

Sbach 342 – 107″ (2.70m)

The model that really put Pilot-RC on the map.  Every manufacturer produced an Sbach 342 but only one was ever talked about, only one got it just right.

The Pilot-RC Sbach 342 is one of those models that can be smooth, precise and ever so forgiving as it can be agile and manoeuvrable.  Anyone who tries one wants one, and anyone who has one wants to just fly and fly.  The best way to describe it is as a plane that you simply feel confortable with, from the beginning.

Specifications:

Model:Sbach 342 – 36%
Wingspan:107″ (2,700mm)
Length:95.7″ (2,430mm)
Wing area:2,296 “² (14,818 cm²)
Weight:27.5lbs (12.5kg)

Video and GALLERY:

FEATURES:

  • Strong yet light weight design, specially developed for precision acrobatic and 3D flying
  • Genuine German Oracover (Ultracote) covering
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed hinges (glued and pinned)
  • Internally mounted cowling – so no external screws exposed
  • Fuselage has exhaust tunnel ready to accept canister installation
  • Removable rudder (as well as removable wings and stabs)
  • Laser engraved motor mounting position and multiple servo locations available for Rudder setup (pull pull or direct push pull)

Included hardware:

  • Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels, axels and wheel pants
  • Pre-preared pull-pull wires and pushrods with ball links
  • Matching carbon spinner, 4.5″

Required hardware:

Motor: 80-120cc or equivalent electric

Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-Rc recommended hardware:

Colour schemes available:

Colour scheme S-01:
References: Oracover 21-010, 21-071, 21-022 / Ultracote HANU870, HANU874, HANU883

no images were found


Colour scheme S-05:
References: Oracover 21-010, 21-056, 21-060 / Ultracote HANU870, HANU847, HANU877

no images were found

Build manual:

MORE PHOTOS & VIDEOS:

More photos available on the Pilot-RC facebook: www.facebook.com/pilotrcmodel
